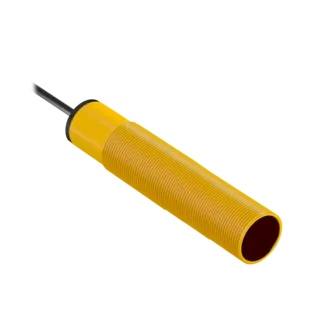

Banner EZ-BEAM S18 Series Epoxy Encapsulated Barrel-Mount Sensor, Receiver Range 20 m, Input 10-30 V dc Output Complementary PNP 2 m (6.5 ft) Cable, S18SP6R

Part Number : S18SP6R

Brand :
Banner

The Banner S18 Series, S18SP6R is a compact, barrel-mount sensor featuring a durable epoxy coating for an easy installation process. It offers a range of special features including water detection, remote teaching, and an intrinsically safe design, making it a versatile tool for a variety of applications.

View all

KWD 18.000

Quantity
Description
Specifications
Related products

Description

The Banner S18 Series, S18SP6R is an epoxy encapsulated barrel-mount sensor, designed with superior durability and easy installation in mind. This compact sensor comes with a reliable epoxy coating that ensures its longevity and resistance to wear and tear. Its barrel-mount design allows for quick and simple installation, saving you time and effort. The sensor boasts a variety of special features, such as intrinsically safe operation, water detection, and remote teach capabilities. The intrinsically safe feature ensures the sensor's safe operation in potentially hazardous environments. The water detection feature is particularly useful in applications that involve the monitoring of liquid levels. The sensor has a robust IP rating, indicating its high level of protection against dust and water ingress. The NEMA/UL type rating further attests to its compliance with safety standards. Its sensing beam, cable length, power, and sensing mode can be customized to meet your specific needs. The sensor also has a maximum sensing distance, multiple outputs, a power supply/supply voltage, and a specific connection type. Additional features include its operation temperature range, output response time, delay at power-up, and repeatability. The sensor comes with a certain number of pins and can operate optimally at a specified maximum relative humidity. The lens material, barrel diameter, and indicator type are other noteworthy characteristics of this sensor. The S18SP6R sensor also has an opposed mode emitter/receiver and is washdown rated, Ecolab certified, encapsulated, and audible. The health/marginal signal output is another important feature that contributes to the sensor's overall functionality and efficiency.

Product Overview

The Banner S18 Series, Epoxy Encapsulated Barrel-Mount Sensor, model S18SP6R, is a compact and durable sensor designed for easy installation. The sensor is encapsulated in a robust epoxy coating, ensuring its durability and longevity even in harsh conditions. It is equipped with numerous features such as Intrinsically Safe, Remote Teach, Water Detection, and many more that make it a versatile and reliable device for various sensing applications.

Specifications

This product boasts a wide range of specifications. It comes with an IP rating, NEMA / UL Type Rating, and Sensing Beam. The cable length is also specified along with power, sensing modes, housing style, primary housing material, and input-output details. The maximum sensing distance, outputs, power supply/supply voltage, and the connection are also provided. Operational temperatures, output response time, delay at power-up, and repeatability are some of the other detailed specifications. Special features and the number of pins, max operation relative humidity, lens material, barrel diameter, and indicator are also included. Notably, this sensor has opposed mode emitter/receiver and features such as Washdown Rated, Ecolab Certified, Encapsulated, Audible, and Health/Marginal Signal Output.

Special Features

The Banner S18 Series, Epoxy Encapsulated Barrel-Mount Sensor, S18SP6R is not just a sensor, it offers multiple special features that set it apart. It is intrinsically safe, making it a reliable choice for hazardous environments. It also comes with a remote teach feature for easy training and usage. Its water detection feature makes it suitable for applications where water or moisture presence needs to be detected. The sensor is also encapsulated, ensuring it is protected from dust, dirt, and other contaminants. With an audible feature, it provides an audible signal for certain conditions, and its health/marginal signal output ensures it continues to function optimally over time.

Specifications

IP Rating
IP67, IP69K
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Infrared LED
Cable Length (m)
2
Power
DC
Sensing Mode (General)
Opposed
Sensing Mode (Detailed)
Receiver
Housing Style
Barrel
Primary Housing Material
Thermoplastic
Input Output
Discrete
Max Sensing Distance (mm)
20000
Outputs
PNP
Power Supply/Supply Voltage
10-30 V dc
Connection
Cable
Min Op. Temp. (°C)
-40
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
70
Output response time (ms)
3 ON/1.5 OFF
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Delay at Power-up (ms)
100
Repeatability (µs)
375
Number of Pins
4
Max Op. Relative Humidity [%]
90% @ 50°C
Lens Material
Polycarbonate
Barrel Diameter (mm)
18
Indicator
LEDs
Opposed Mode Emitter/Receiver
Receiver
Feature: Washdown Rated
Yes
Feature: Ecolab Certified
Yes
Feature: Encapsulated
Yes
Feature: Audible
No
Feature: Health/Marginal Signal Output
Yes
