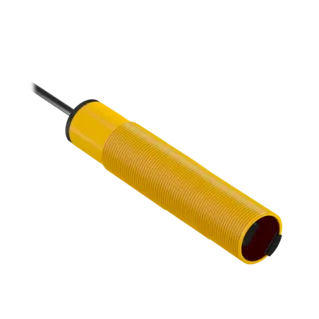

Banner EZ-BEAM S18 Series Epoxy Encapsulated Barrel-Mount Sensor, Fixed Field Range 50 mm, Input 10-30 V dc Output Complementary PNP 150 mm (6 in) 4-pin M12 PVC Pigtail QD, S18SP6FF50QP

Part Number : S18SP6FF50QP

Brand :
Banner

The Banner S18 Series Epoxy Encapsulated Barrel-Mount Sensor, S18SP6FF50QP, is a highly durable and efficient sensing device with an encapsulated design for added protection. It features a wide range of specifications including IP and NEMA/UL ratings, adjustable sensing modes, and a variety of special features like remote teach, water detection, and health/marginal signal output.

View all

KWD 44.000

Quantity
Description
Specifications
Related products

Description

The Banner S18 Series Epoxy Encapsulated Barrel-Mount Sensor, S18SP6FF50QP, is specifically designed to offer high performance in demanding environments. It features a robust epoxy encapsulation for enhanced durability and protection against harsh conditions. This sensor boasts an impressive IP rating for water and dust resistance, as well as a NEMA/UL type rating for safety and reliability. The sensor offers adjustable sensing modes for versatile application and has a sensing beam that ensures accurate detection. The device is equipped with a cable of a specific length and a quick disconnect type for easy installation. It operates within a specific temperature range and has a power supply/voltage capacity that ensures efficient performance. This sensor features a variety of special characteristics, including intrinsic safety, remote teach functionality, and water detection ability. It offers a delay at power-up, exceptional repeatability, and a certain number of pins for connectivity. The sensor operates within a specific relative humidity range and uses a specific lens material for optimal sensing. The barrel diameter of the sensor is designed for easy mounting, and its indicator aids in tracking its operation. The sensor also has several features that enhance its functionality and user-friendliness, including being washdown rated, Ecolab certified, encapsulated, audible, and quick disconnect. Additionally, it offers a health/marginal signal output feature that notifies users of the sensor's operation status.

Product Overview

The Banner S18 Series, Epoxy Encapsulated Barrel-Mount Sensor, S18SP6FF50QP, is a high-performance sensing solution. Its unique barrel-mount design and epoxy encapsulation make it a durable and reliable choice for various applications. It boasts an assortment of features like being intrinsically safe, remote teach capability, and water detection to meet versatile needs.

Technical Specifications

This sensor has an IP rating, NEMA / UL Type Rating and it features different sensing modes, both general and detailed. The operational power, housing style, primary housing material, and input-output specifications are designed for optimal performance. It comes with a specific cable length and has a maximum sensing distance. It operates within a certain temperature range and has a specific relative humidity capacity. The connection type is user-friendly with a quick disconnect feature.

Special Features and Certifications

The Banner S18SP6FF50QP sensor comes with a host of special features. It is encapsulated, providing added protection and longevity. It has an audible indicator for easy operation. The sensor is also Ecolab Certified and washdown rated, making it suitable for use in environments where hygiene is paramount. The number of pins, lens material, barrel diameter, and output response time are additional features that enhance its functionality. Lastly, it comes with a health/marginal signal output feature for efficient monitoring.

Specifications

IP Rating
IP67, IP69K
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Infrared LED
Cable Length (m)
0.15
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background Suppression (Fixed)
Power
DC
Housing Style
Barrel
Primary Housing Material
Thermoplastic
Input Output
Discrete
Max Sensing Distance (mm)
50
Outputs
PNP
Power Supply/Supply Voltage
10-30 V dc
Connection
Pigtail QD
Quick Disconnect Type
M12
Min Op. Temp. (°C)
-40
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
70
Output response time (ms)
3
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Delay at Power-up (ms)
100
Repeatability (µs)
750
Number of Pins
4
Max Op. Relative Humidity [%]
90% @ 50°C
Lens Material
Acrylic
Barrel Diameter (mm)
18
Indicator
LEDs
Feature: Washdown Rated
Yes
Feature: Ecolab Certified
Yes
Feature: Encapsulated
Yes
Feature: Audible
No
Feature: Quick Disconnect
Yes
Feature: Health/Marginal Signal Output
Yes
