Atos SC LIR Type ISO Cartridges, Size 16 to 100, Max Pressure 420 bar, Max Flow Rate 9000 l/min

Brand :
Atos

Atos SC LI ISO Cartridges are 2-way slip-in cartridges for directional, pressure, flow, and check controls, conforming to ISO 7368 standards. Designed for compact manifolds, they support high flow rates with low pressure drops.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

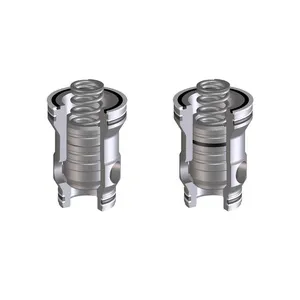

The Atos SC LI ISO Cartridges offer reliable performance in hydraulic systems, featuring a poppet sliding into a sleeve, supported by a spring with various cracking pressures. Optional SC LIR versions include sealed poppet execution for improved leak-free performance, ideal for hydraulic circuits with accumulators or vertical loads. These cartridges are available in sizes ranging from 16 to 100, handling flow rates up to 9000 l/min and pressures up to 420 bar.

General Features

ISO 7368 standard 2-way slip-in cartridges for directional, pressure, flow, and check controls.

Applications

Ideal for compact hydraulic manifolds, high flow rates, and low-pressure drop operations.

Construction

Features a poppet sliding into a sleeve, supported by a spring with various cracking pressures.

Optional Versions

Sealed poppet execution available for leak-free performance in accumulator or vertical load applications.

Specifications

Sizes 16 to 100, max flow rate of 9000 l/min, and pressure up to 420 bar.

Downloads

H003_datasheet_1.pdf

pdf
Download

Specifications

Type
2-way slip-in, directional, pressure, flow, check controls
Standard
Meet the requirements of an ISO or DIN Standard
ISO 7368
Size Range
16 to 100
Max Flow Rate
9000 l/min at Δp 5 bar
Max Pressure
420 bar
Temperature Range
-30°C to +70°C (standard seals)
Seal Options
NBR, FKM, NBR low temp
Compliance
RoHS, REACH
