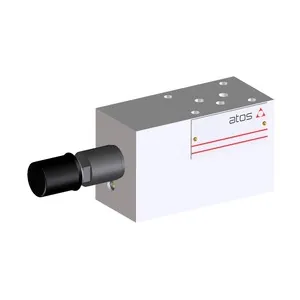

Atos QVHZO Subplate, Modular Plate with Pressure Relief Cartridges, Size 06, Pressure 210 bar

Brand :
Atos

Modular plate with pressure relief cartridges for proportional flow control valves, ISO 4401 size 06.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Atos QVHZO subplates are designed for proportional flow control applications. These modular plates accommodate QVHZO-A proportional flow control valves and pressure relief cartridges (both to be ordered separately). Ideal for controlling flow to multistation subplates, they support a wide range of hydraulic systems requiring precise pressure and flow regulation.

Key Features

Modular plate with pressure relief cartridges for proportional flow control valves. ISO 4401 size 06 with pressure rating up to 210 bar.

Applications

Suitable for flow control in multistation subplates used in mobile and industrial hydraulic systems.

Downloads

TK030_datasheet_1.pdf

pdf
Download

Specifications

Max Operating Pressure
210 bar
Flow Range
Up to 60 l/min
Mounting surface
ISO 4401 size 06
Compatible Valves
QVHZO-A proportional flow control valve, CART M-5 pressure relief valve
Applications
Mobile machines, industrial hydraulic systems
Fastening Bolts
4 M5x50 socket head screws, class 12.9
Ports
P (Pressure), A, B (Use Ports), T (Tank Port), Ø 7.5 mm
Seal type
4 OR 108 seals
