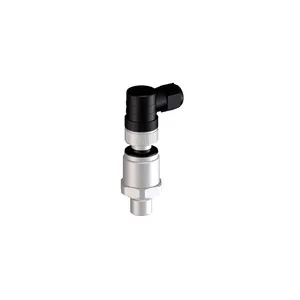

Atos Pressure Transducer, type E-ATR-8, analog, 1/4" hydraulic connection, pressure range 0 to 400 bar, IP67 protection

Brand :
Atos

Atos E-ATR-8 pressure transducer with amplified analog output signal, offering precise pressure measurement and exceptional overload resistance.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The Atos E-ATR-8 pressure transducer is designed for both static and dynamic pressure measurement in hydraulic systems. It features a thin-film circuit for high resistance to overloads and pressure peaks. This device provides an amplified voltage or current output signal, proportional to hydraulic pressure, with thermal drift compensation. Factory-calibrated, CE-marked, and IP67 rated, it ensures reliability and performance in demanding environments.

Key Features

• Factory preset and calibrated • Thin-film circuit for high resistance to overloads • Amplified analog output signal • Thermal drift compensation • IP67 protection degree • CE mark for EMC compliance

Specifications

• Pressure range: 0 ÷ 60/100/160/250/400 bar • Overload pressure: 2 x FS (max 600 bar) • Burst pressure: 5 x FS (max 1700 bar) • Operating temperature: -40 to +100°C • Accuracy: ? ±1.2% FS • Electrical connection: M12 5-pin connector • Power supply: 14 ÷ 30 VDC • Protection: IP67

Downloads

GS465_datasheet_1.pdf

pdf
Download

Specifications

Pressure Range
0 ÷ 60/100/160/250/400 bar
Overload Pressure
2 x FS (max 600 bar)
Burst Pressure
5 x FS (max 1700 bar)
Response Time
≤ 2 ms
Operating Temperature
-40 ÷ +100°C
Accuracy
≤ ±1.2% FS
Electrical connection
M12 5-pin connector
Power Supply
14 ÷ 30 VDC
Protection Class
IP67
