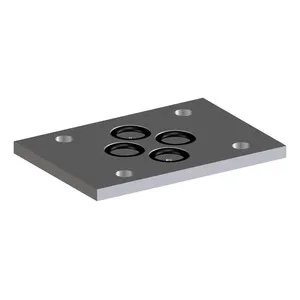

Atos Modular Calibrated Orifices Plate, ISO 4401 size 06, with calibrated holes for flow control

Brand :
Atos

Atos modular calibrated orifices plate with ISO 4401 size 06, designed for precise flow control in hydraulic systems.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The Atos calibrated orifices plate is a modular plate with calibrated holes designed for flow limitation in hydraulic systems. Compatible with ISO 4401 size 06 valves, it features up to 23 calibrated holes ranging from 0.4 mm to 5.0 mm, allowing for custom combinations on ports A, B, P, and T as per application requirements. Ideal for replacing plugs or restrictors, this plate ensures accurate flow control to pilot valves or actuators and is supplied with 4 OR-108 seals.

Key Features

• Modular plate with calibrated holes for hydraulic systems • ISO 4401 size 06 compatibility • Up to 23 calibrated holes from 0.4 mm to 5.0 mm • Custom port combinations on A, B, P, and T • Supplied with 4 OR-108 seals

Specifications

• Valve compatibility: ISO 4401 size 06 • Hole dimensions: 0.4 mm to 5.0 mm • Ports: A, B, P, T with customizable combinations • Seals material: NBR (standard), FKM (optional) • Applications: Flow control to pilot valves or actuators

Downloads

TE020_datasheet_1.pdf

pdf
Download

Specifications

Valve Compatibility
ISO 4401 size 06
Hole Dimensions
0.4 mm to 5.0 mm
Ports
A, B, P, T with customizable combinations
Seals material
NBR (standard), FKM (optional)
Applications
Flow control to pilot valves or actuators
