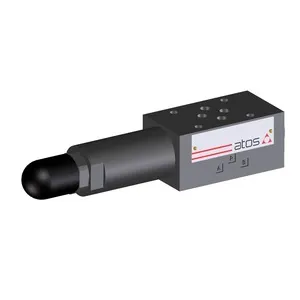

Atos HS/KS Type Modular Valves, Sizes 06 & 10, Max Pressure 350 bar, Temperature Range -40°C to +70°C

Brand :
Atos

Sequence, direct or piloted, spool-type modular valves.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Atos HS and KS modular valves are sequence valves designed for hydraulic systems. The HS series are direct-acting valves for port P, while the KS series are double-stage valves with a spool-type configuration. These valves provide reliable sequence control and feature pressure adjustment using locking screws or optional handwheels. They are compliant with ISO 4401 sizes 06 and 10 for modular installation.

Key Features

- Sequence valves with spool-type configuration. - Direct-operated (HS) or piloted (KS) models. - Sizes 06 and 10 as per ISO 4401 standards. - Max flow: 40–80 l/min; Max pressure: 350 bar (HS), 315 bar (KS).

Applications

- Suitable for industrial hydraulic systems requiring sequence control with modular installation.

Downloads

D130_datasheet_1.pdf

pdf
Download

Specifications

Valve Type and Models
HS-011, KS-011
Maximum flow
HS: 40 l/min; KS: 80 l/min
Maximum Pressure
HS: 350 bar; KS: 315 bar
Pressure Adjustment Ranges
HS: 3–32 bar, 20–100 bar, 50–210 bar; KS: 7–100 bar, 8–210 bar
Seal Options
NBR (standard), FKM (/PE option), HNBR (/BT option)
Operating Temperature
NBR: -30°C to +70°C; FKM (/PE): -20°C to +70°C; HNBR (/BT): -40°C to +70°C
Mounting surface
ISO 4401, Sizes 06 and 10
Fluid compatibility
Mineral oils (DIN 51524), Flame-resistant fluids (HFDU, HFDR, HFC)
Compliance
RoHS Directive 2011/65/EU, REACH Regulation (EC) No. 1907/2006
