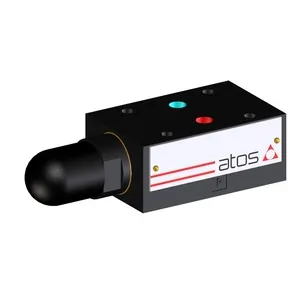

Atos HMU & RR Type Modular Valves, Size 06, Max Flow 4 l/min, Max Pressure 350 bar, Temperature Range -20°C to +80°C

Brand :
Atos

Pressure relief or reducing for pilot lines, direct, spool or poppet type.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Atos HMU and RR modular valves are designed for precise pressure relief and reducing functions in hydraulic systems. HMU valves are pressure relief valves for fine pressure control at low flow, primarily used for pilot lines and as pilot stages for pressure relief valves. RR valves are pressure-reducing valves designed for stable pressure reduction in pilot lines with fixed pressure settings. These valves are suitable for modular applications with ISO 4401 size 06 mounting surfaces.

Key Features

- HMU valves: Pressure relief valves for fine pressure control at low flow. - RR valves: Pressure-reducing valves with fixed pressure settings for pilot lines. - Modular execution with ISO 4401 size 06 mounting surfaces. - Designed for pilot lines and modular applications.

Applications

- Suitable for industrial and mobile hydraulic systems requiring reliable pressure relief or reduction in pilot lines.

Downloads

TD010_datasheet_1.pdf

pdf
Download

Specifications

Valve Type and Models
- HMU-011, HMU-012, HMU-013, HMU-014: Single and double configurations for pressure relief functions. - RR-3/*: Pressure-reducing valves with settings of 7, 14, 24, or 30 bar.
Maximum flow
4 l/min for both HMU and RR valves.
Maximum Pressure
HMU: 350 bar. RR: 250 bar.
Pressure Adjustment Ranges
- HMU: Adjustable pressure ranges of 2–50 bar, 3–100 bar, 10–210 bar, and 15–350 bar. - RR: Fixed pressure settings of 7, 14, 24, and 30 bar.
Seal Options
NBR (standard), FKM (/PE option).
Operating Temperature
- Standard seals: -20°C to +70°C. - FKM (/PE): -20°C to +80°C.
Mounting surface
ISO 4401-03-02-0-05, with ports P, T, A, and B (Ø 7.5 mm max).
Fluid compatibility
Mineral oils (DIN 51524), hydraulic fluids with specific compatibility.
Compliance
ISO 4401 standards, RoHS, and REACH regulations.
