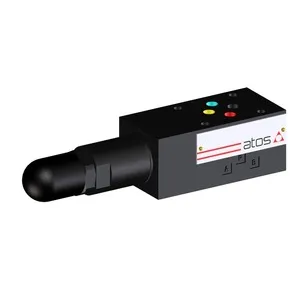

Atos HMP/ HM/KM Type Modular Valves, Sizes 06 & 10, Max Pressure 350 bar, Temperature Range -40°C to +70°C

Brand :
Atos

Pressure relief, direct or piloted, poppet-type modular valves.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Atos HMP, HM, and KM modular valves are designed for pressure relief in hydraulic systems. The HMP series offers direct-operated valves, while HM and KM series provide double-stage pressure relief with balanced poppets. They allow for precise pressure adjustments with locking screws or optional handwheels. These valves are compliant with ISO 4401 sizes 06 and 10, ensuring reliable performance in industrial applications.

Key Features

- Direct-operated (HMP) or piloted (HM, KM) pressure relief valves. - Poppet-type design with balanced construction. - Available in sizes 06 and 10 as per ISO 4401 standards. - Max flow: 35–120 l/min; Max pressure: 350 bar.

Applications

- Suitable for industrial hydraulic systems requiring modular, reliable pressure relief valves.

Downloads

D120_datasheet_1.pdf

pdf
Download

Specifications

Valve Type and Models
HMP-011, HMP-012, HMP-013, HMP-014, HMP-015; HM-011 to HM-015; KM-011 to KM-015
Maximum flow
HMP: 35 l/min; HM: 60 l/min; KM: 120 l/min
Maximum Pressure
350 bar
Pressure Adjustment Ranges
HMP: 2–50 bar, 3–100 bar, 10–210 bar, 15–350 bar; HM & KM: 4–50 bar, 5–100 bar, 5–210 bar, 5–350 bar
Seal Options
NBR (standard), FKM (/PE option), HNBR (/BT option)
Operating Temperature
Standard seals: -30°C to +70°C; FKM seals (/PE): -20°C to +70°C; HNBR seals (/BT): -40°C to +70°C
Mounting surface
ISO 4401, Sizes 06 and 10
Compliance
RoHS Directive 2011/65/EU, REACH Regulation (EC) No. 1907/2006
Fluid compatibility
Mineral oils (DIN 51524), Flame-resistant fluids (HFDU, HFDR, HFC)
