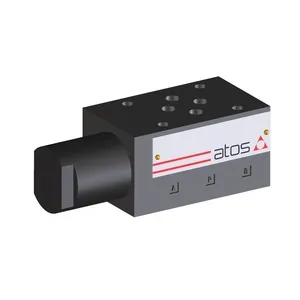

Atos HC/KC/JPC Type Modular Valves, Sizes 06–16, Max Pressure 350 bar, Temperature Range -40°C to +80°C

Brand :
Atos

Pressure compensator, direct or piloted, spool-type, 2-way, fixed or adjustable ?p.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Atos HC, KC, and JPC modular pressure compensators are designed for maintaining a constant flow rate by ensuring a consistent differential pressure (?p) across ports. The HC series offers fixed ?p options, while the KC and JPC series provide adjustable ?p. These valves are suitable for modular assembly with on/off and proportional directional control valves. Available in ISO 4401 sizes 06, 10, and 16, they ensure reliable pressure regulation in diverse industrial hydraulic applications.

Key Features

- Pressure compensator, spool-type, direct (HC) or piloted (KC, JPC) models. - Fixed ?p available for HC (size 06); adjustable ?p for all sizes (5–35 bar). - ISO 4401 sizes 06, 10, and 16 for modular installation. - Max flow: HC: 50 l/min, KC: 100 l/min, JPC: 200 l/min; Max pressure: 350 bar.

Applications

- Suitable for industrial hydraulic systems requiring precise pressure compensation.

Downloads

D150_datasheet_1.pdf

pdf
Download

Specifications

Valve Type and Models
HC-011/8, HC-011/30, KC-011/30, JPC-211/30
Maximum flow
HC: 50 l/min; KC: 100 l/min; JPC: 200 l/min
Maximum Pressure
350 bar
Pressure Adjustment Ranges
Fixed Δp (HC): 8 bar; Adjustable Δp (all models): 5–35 bar
Seal Options
NBR (standard), FKM (/PE option), HNBR (/BT option)
Operating Temperature
Standard seals: -30°C to +80°C; FKM (/PE): -20°C to +70°C; HNBR (/BT): -40°C to +70°C
Mounting surface
ISO 4401, Sizes 06, 10, 16
Fluid compatibility
Mineral oils (DIN 51524), Flame-resistant fluids (HFDU, HFDR, HFC)
Compliance
RoHS Directive 2011/65/EU, REACH Regulation (EC) No. 1907/2006
