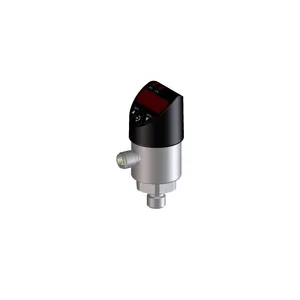

Atos Electronic Pressure Switch, type E-DAP-2, digital, with display, 1/4" hydraulic connection, pressure range 2 to 400 bar, IP65/IP67 protection

Brand :
Atos

Atos E-DAP-2 compact electronic pressure switch with integral digital display, offering precise real-time pressure monitoring.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The Atos E-DAP-2 electronic pressure switch features an integral 4-digit digital display for real-time monitoring of hydraulic pressure. It supports multiple pressure units (bar, Mpa, kPa, psi, kg/cm²), adjustable visual orientation, and two independent PNP switching outputs. The switch provides IP65/IP67 protection and offers configurable parameters like switching points and hysteresis. Ideal for precise control and monitoring in hydraulic circuits.

Key Features

• Compact design with integral 4-digit digital display • Adjustable visual orientation • IP65/IP67 protection degree • Two independent PNP switching outputs • Multiple pressure units supported: bar, Mpa, kPa, psi, kg/cm² • User-configurable parameters like switching points, hysteresis, and more

Specifications

• Pressure range: 0.5 ÷ 100 bar, 1.25 ÷ 250 bar, 2 ÷ 400 bar • Overload pressure: 2 x FS • Response time: ? 10 ms • Operating temperature: -20 to +80°C • Accuracy: ? ±1.0% FS ±1 digit • Power supply: 15 ÷ 35 VDC • Protection: IP65/IP67

Downloads

GS470_datasheet_1.pdf

pdf
Download

Specifications

Pressure Range
0.5 ÷ 100 bar, 1.25 ÷ 250 bar, 2 ÷ 400 bar
Overload Pressure
2 x FS
Response Time
≤ 10 ms
Operating Temperature
-20 ÷ +80°C
Accuracy
≤ ±1.0% FS ±1 digit
Power Supply
15 ÷ 35 VDC
Protection Class
IP65/IP67
