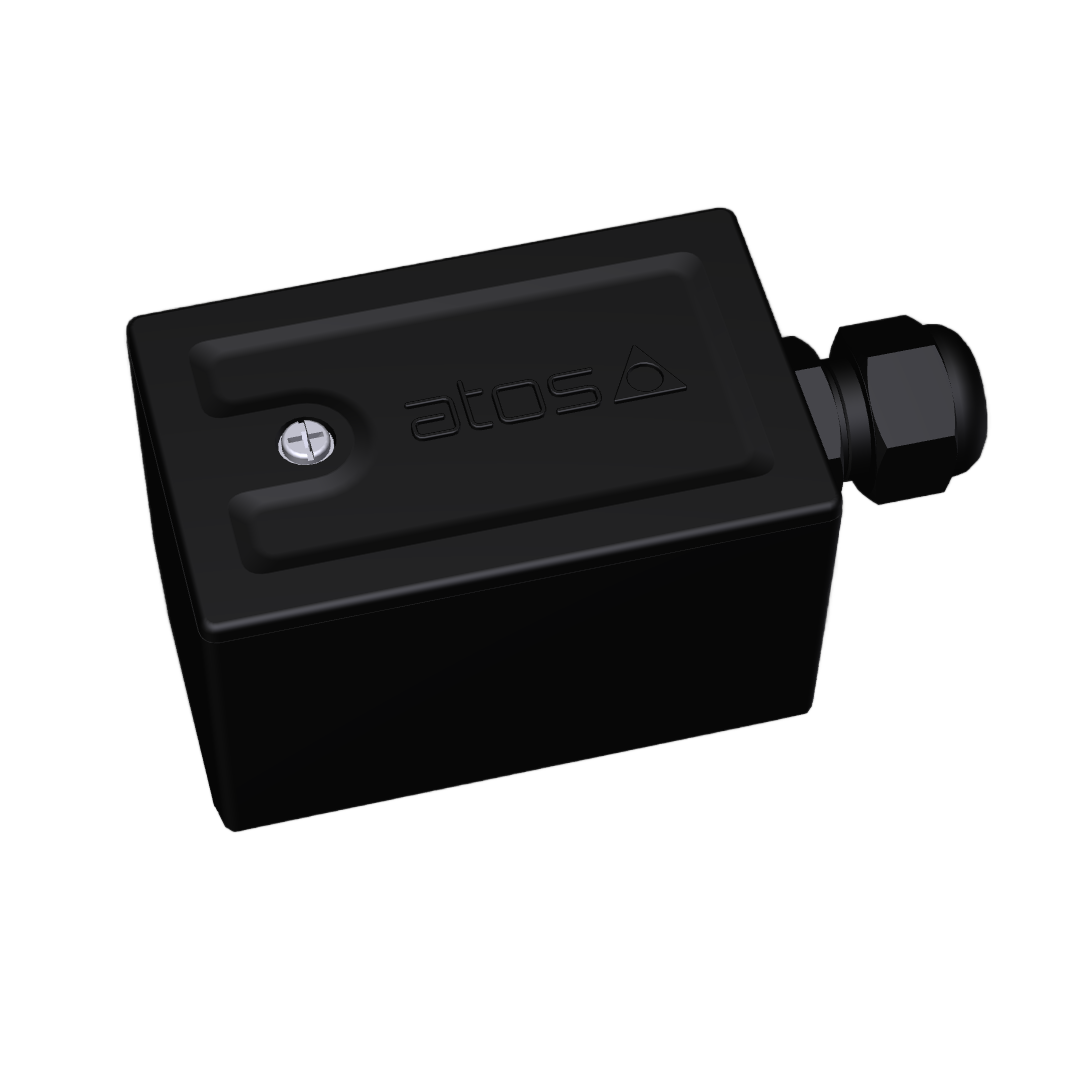

Atos Analog Electronic Driver, DIN 43650 Plug-In, For Single Solenoid Proportional Valves, 24 VDC Input, IP65 Rated, E-MI-AC-01F

Part Number : E-MI-AC-01F

Brand :
Atos

Atos E-MI-AC-01F is a compact DIN 43650 plug-in analog electronic driver designed for single-solenoid proportional valves without transducers. Offers adjustable dead band, ramp, and scale control with IP65 protection and CE compliance.

View all

KWD 92.000

Quantity
Description
Specifications
Downloads
Related products

Description

The Atos E-MI-AC-01F is an advanced analog driver engineered for precise control of single-solenoid proportional valves without integrated transducers. This compact DIN 43650 plug-in unit modulates the solenoid current based on a 0–10?V voltage input, offering enhanced control over flow, pressure, or position in open-loop hydraulic systems. Equipped with onboard potentiometers for bias, ramp, and scale adjustments, it allows system-specific tuning. Housed in a robust aluminum enclosure with IP65 protection, the E-MI-AC-01F ensures resistance to dust and moisture, making it ideal for harsh industrial environments. Compliance with EMC and RoHS standards ensures reliable and safe operation.

Key Features

• DIN 43650 plug-in electronic driver for single-solenoid valves

• Bias, scale, and symmetrical ramp adjustment via onboard potentiometers

• Operating voltage: 24?VDC (optional 12?VDC version)

• Max output current: 2.7?A PWM type

• Potentiometer supply: +5?V / 10?mA

• Aluminum housing with IP65 protection

• EMC-compliant, CE-marked

• Dead band and scale regulation for accurate valve control

• Voltage input: 0–10?VDC (standard), optional 0–20?mA with /RR model

Applications

• Hydraulic flow and pressure regulation

• Open-loop control systems

• Industrial automation

• Mobile equipment with proportional valve actuation

• OEM machinery using Atos ZO(R)-A series valves

Downloads

Datasheet Atos E-MI-AC Drivers.pdf

pdf
Download

Specifications

Valve Compatibility
Single-solenoid proportional valves without transducer
Supply Voltage
24 VDC nominal (range: 21–33 V, ripple <10%)
Power Consumption
Max 50 W
Max Output Current
2.7 A (PWM for 3.2 Ω coil resistance)
Reference Signal Input
0–10 VDC (optional 0–20 mA with /RR option)
Potentiometer Supply Output
+5 V / 10 mA (at contact 3)
Input Impedance
Voltage: >50 kΩ; Current: 250 Ω
Ramp Time Adjustment
0 to 10 seconds (adjustable via potentiometer)
Adjustments
Bias (P4), Scale (P3), Ramp (P1), Dither (P5*)
Connector Type
DIN 43650 plug-in format
Protection Rating
IP65 (aluminum enclosure)
Operating Temperature
0 to +50 °C (Storage: -20 to +70 °C)
Weight
190 g
EMC Compliance
EN 61000-6-2 (Immunity), EN 61000-6-4 (Emission)
Other Compliance
CE, RoHS, REACH
Monitoring Output
Test point (1 mV = 10 mA measurement accuracy)
Mounting Format
DIN 43650 plug, VDE 0110
Country of origin
Italy
