Advanced Pressure Systems (APS) Rupture Disc Holder Assembly, 9/16" MP, 20K Complete, Max Burst Pressure 20000 PSI, GDWJ Style, for Protecting Pump Systems from Overpressure, 35-008-010

Part Number : 35-008-010

Brand :
Advanced Pressure Systems (APS)

Heavy-duty GDWJ-style rupture disc holder with 20,000 psi capacity, built for 9/16" MP connections. Designed for extreme pressure venting in industrial blasting applications.

View all

KWD 162.750

Quantity
Description
Specifications
Downloads
Related products

Description

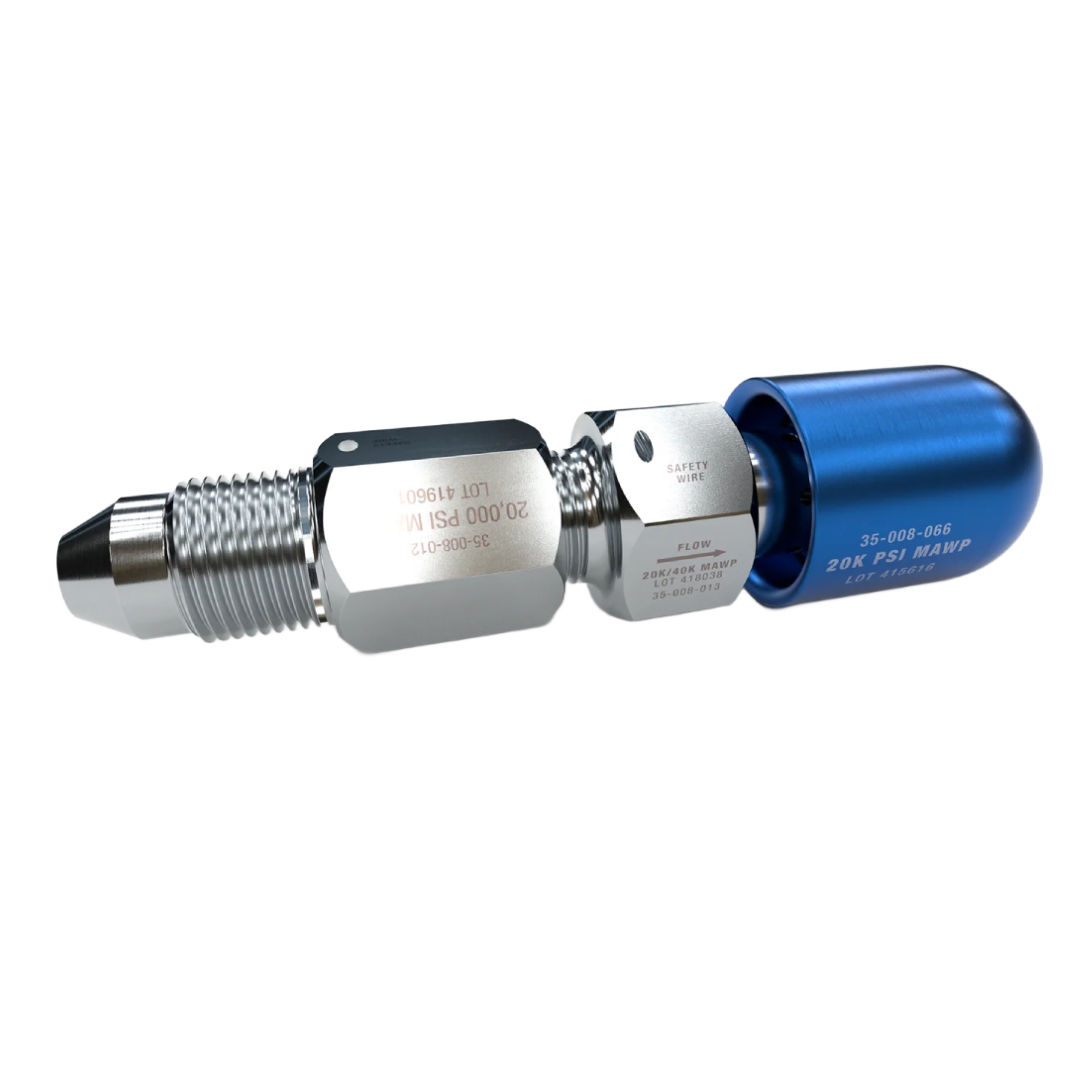

APS’s 20K GDWJ-Style Rupture Disc Holder (35-008-010) is tailored for systems requiring precise and durable over-pressure protection. With a 9/16" MP male fitting, the assembly supports up to 20,000 psi and uses a GDWJ-style domed rupture disc (77512003). The blue-coded safety shroud, stainless steel build, and Buna-N seal ensure safety, visibility, and longevity. This unit is field-friendly and tool-free, suitable for intense service environments such as hydro-blasting, pressure testing, or offshore equipment protection.

Key Features

• Rated for 20,000 psi maximum pressure

• 9/16" MP threaded connection

• GDWJ-style seating (disc 77512003)

• Blue safety shroud for high-pressure indication

• Quick access nut and hold-down ring

• Buna-N 90 duro O-ring

• Corrosion-resistant stainless steel construction

• Compact and easy to service

• Prevents unsafe disc substitutions

• Complete preassembled cartridge

Applications

• Overpressure protection in high-pressure waterblast systems

• Safety relief for positive displacement pump circuits

• Used in hydrodemolition and surface preparation equipment

• Integrated into Jetstream, NLB, or similar waterjetting setups

• Installed upstream of sensitive nozzles and hoses to prevent damage

• Suitable for use with 15K, 20K, and 40K psi pressure-rated systems

• Common in maintenance and cleaning of tanks, heat exchangers, and pipelines

• Deployed in OEM assemblies for industrial cleaning units

• Helps minimize downtime by allowing quick rupture disc replacement

• Recommended for use in environments where safety is critical under fluctuating pressures

Component Breakdown

• Body: 35-008-012

• Hold-down Ring: 35-008-011

• Nut: 35-008-013

• Safety Shroud: 35-008-066 (Blue)

• O-Ring: 30-001-910

• Thread Type: 9/16" MP

• Compatible Disc: GDWJ Type 77512003

• Material: Stainless Steel

• Burst Rating: 20,000 psi

• Assembly: Complete APS Cartridge

Downloads

APS 20K-psi-Products-Catalog.pdf

pdf
Download

Specifications

Pressure rating
20,000 psi
Thread Interface
9/16″ MP Male
Disc Seating Style
GDWJ Domed-Deflector
Safety Shroud Color
Blue
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
Buna-N (90 durometer)
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
316 Stainless Steel
Assembly Type
Heavy-duty preloaded assembly
Safety Feature
Overpressure burst control
Serviceability
Quick replacement design
Recommended Use
Hydroblasting pressure systems
