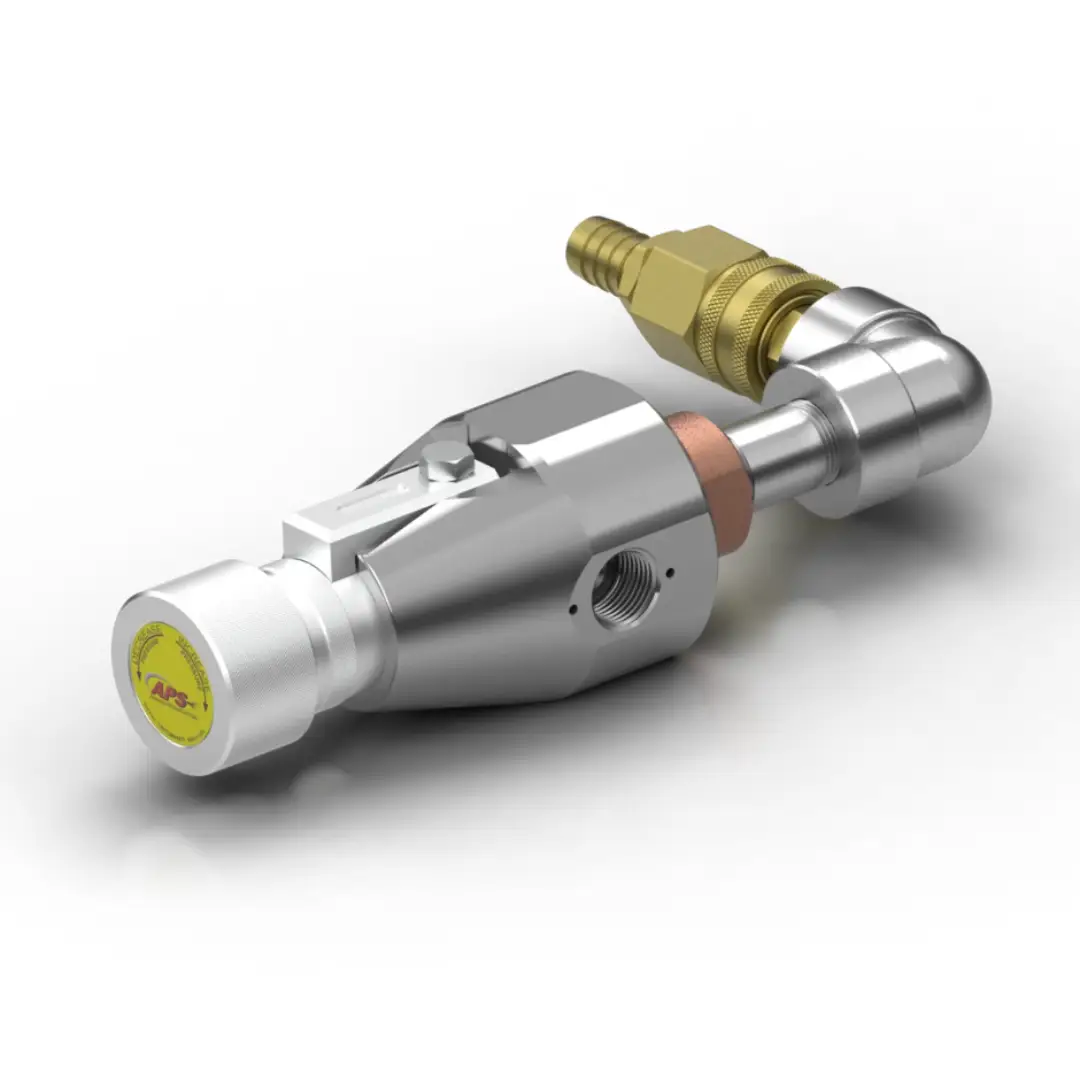

Advanced Pressure Systems (APS) 40K Pressure Regulating Valve (PRV-40K) Assembly, Stainless Steel, 3/4" NPT, Jetstream-Style (53715), 65-040-010

Part Number : 65-040-010

Brand :
Advanced Pressure Systems (APS)

Heavy-duty Jetstream-compatible pressure regulating valve assembly from Advanced Pressure Systems for 40K waterblast systems, designed to bypass flow and control operating pressure up to 20,000 psi MAWP.

View all

KWD 805.000

Quantity
Description
Specifications
Downloads
Related products

Description

This Advanced Pressure Systems 40K Pressure Regulating Valve Assembly (PRV-40K, code 65-040-010) is a Jetstream-compatible bypass valve for high-pressure diesel and electric waterblast pumping units. It diverts part of the pump flow back to a low-pressure return line, allowing the operator to control system pressure when working at the low end of the pump’s flow range. On electric units, where drive speed cannot be reduced, a PRV is considered essential for safe pressure control. The assembly uses an easy-change cartridge design, so the internal valve and seat can be serviced in the field in just a few minutes, minimizing downtime. All wetted components are machined from stainless steel for corrosion resistance and long service life, and the unit mounts directly to the discharge manifold using 3/4" NPT connections and a 3/4" hose barb outlet. The common APS adjuster handle with locking clamp lets operators set pressure by hand and lock the setting for repeatable operation.

Key Features

• Jetstream-compatible 40K pressure regulating valve assembly for high-pressure waterblast systems

• Provides adjustable bypass to a low-pressure outlet for accurate system pressure control on diesel and electric pumps

• Hand-adjusted needle-type valve with positive locking handle – no tools needed for routine pressure adjustment

• Simple field rebuild using an easy-change cartridge assembly; typical service time is only a few minutes

• All major components machined from stainless steel for strength and corrosion resistance in harsh waterblast environments

• Direct-mount design for installation on the fluid end discharge manifold, reducing piping and potential leak points

• Supplied as a complete assembly with elbow, quick disconnects, nipple, hose barb and O-rings ready for installation

Applications

• Pressure control and bypass on high-pressure waterblast pumping units used for industrial cleaning and surface preparation

• Diesel and electric pump skids where system pressure must be controlled without varying pump speed

• Jetstream-style 40K systems requiring a compatible PRV assembly with stainless steel construction

• Bypass regulation when multiple guns or lances are operated at varying flow rates

• General high-pressure waterjetting installations needing a reliable stainless steel pressure regulating / by-pass valve

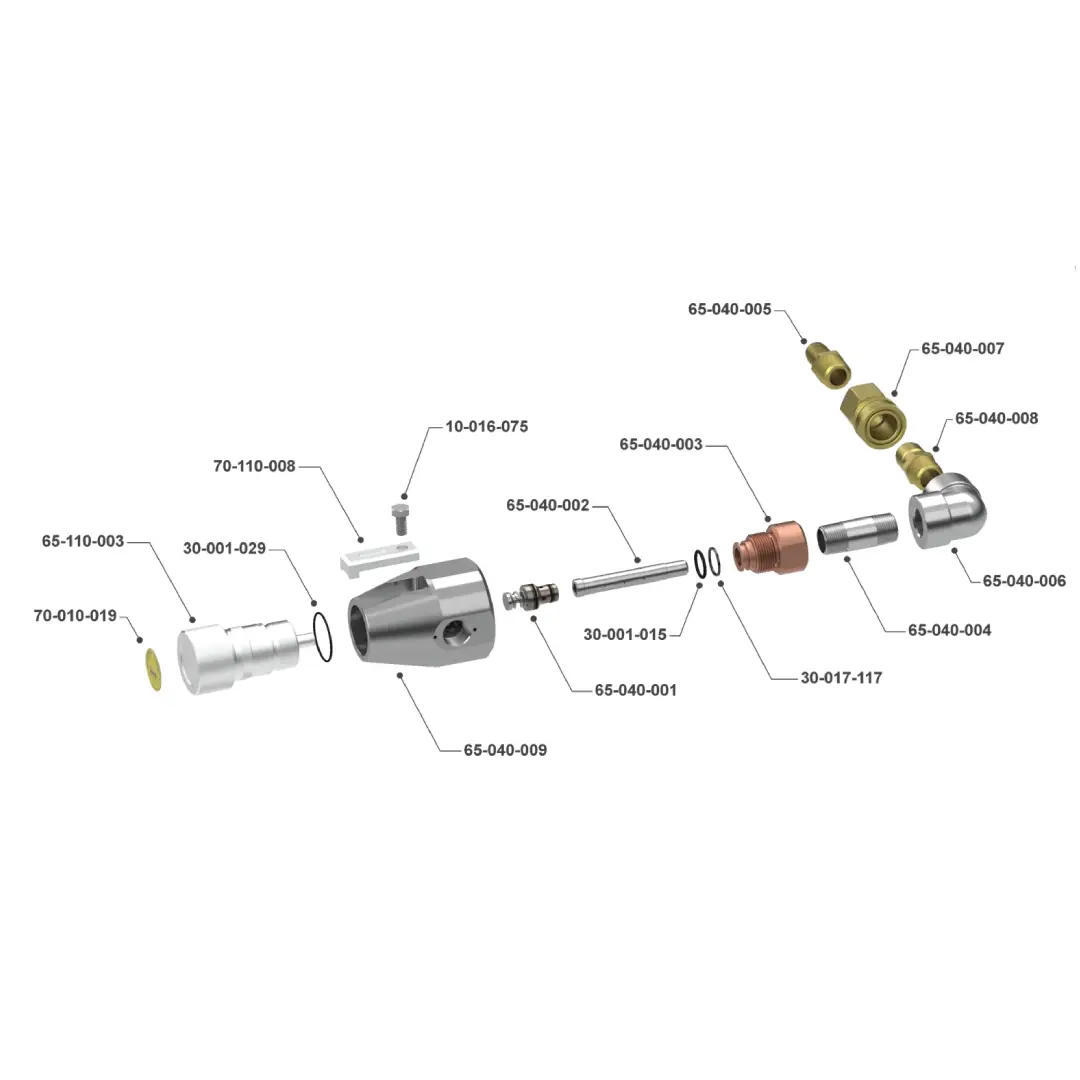

Included Assembly Components

• 65-040-006 – 3/4" NPT × 3/4" NPT cast stainless steel elbow
• 65-040-007 – 3/4" NPT female Parker quick-disconnect coupling
• 65-040-008 – 3/4" NPT male Parker quick-disconnect half
• 65-040-005 – 3/4" NPT male × 3/4" hose barb fitting
• 65-040-004 – 3/4" Schedule 40 stainless steel nipple
• 65-040-003 – 40K PRV discharge adapter
• 65-040-002 – 40K PRV discharge diffuser
• 30-001-015 – O-ring, size 2-015, Buna-N 90 duro
• 30-001-029 – O-ring, size 2-029, Buna-N 90 duro
• 30-001-117 – O-ring (per spec sheet, heavy-duty 90-duro sealing ring)
• 30-017-117 – Delrin split backup ring for the cartridge seal
• 65-040-009 – 40K PRV discharge body, Jetstream-compatible
• 65-040-001 – 40K PRV cartridge assembly (easy-change valve and seat)
• 65-110-003 – common adjuster handle for 15K/20K/40K PRVs
• 70-010-019 – FDV/PRV adjuster handle decal
• 70-110-008 – hold-down clamp for the adjuster handle
• 10-016-075 – 3/8"-16 × 3/4" stainless steel hex head bolt

Downloads

APS Pressure Regulating Valve Datasheet.pdf

pdf
Download

Specifications

Pressure rating
40,000 psi (40K)
Function
The circuit function of a solenoid valve specifies how fluid will flow between the valve's ports when it is energized de-energized.
Pressure regulating / by-pass valve for high-pressure pumps
Connection size
Choose a connection size that matches the size of the pipe or hose it will be connected to. Alternatively, you can size the valve based on the Kv value for more accuracy.
3/4" NPT inlet / outlet with 3/4" hose barb discharge
Construction
Stainless steel body and components
Design Type
Cartridge-style, field-serviceable valve insert
Mounting
Direct mount to fluid-end discharge manifold
Compatibility
Jetstream-style 40K waterblast systems
Operation
The operating principle of the solenoid valve.
Manual hand-adjusted needle valve with locking handle
