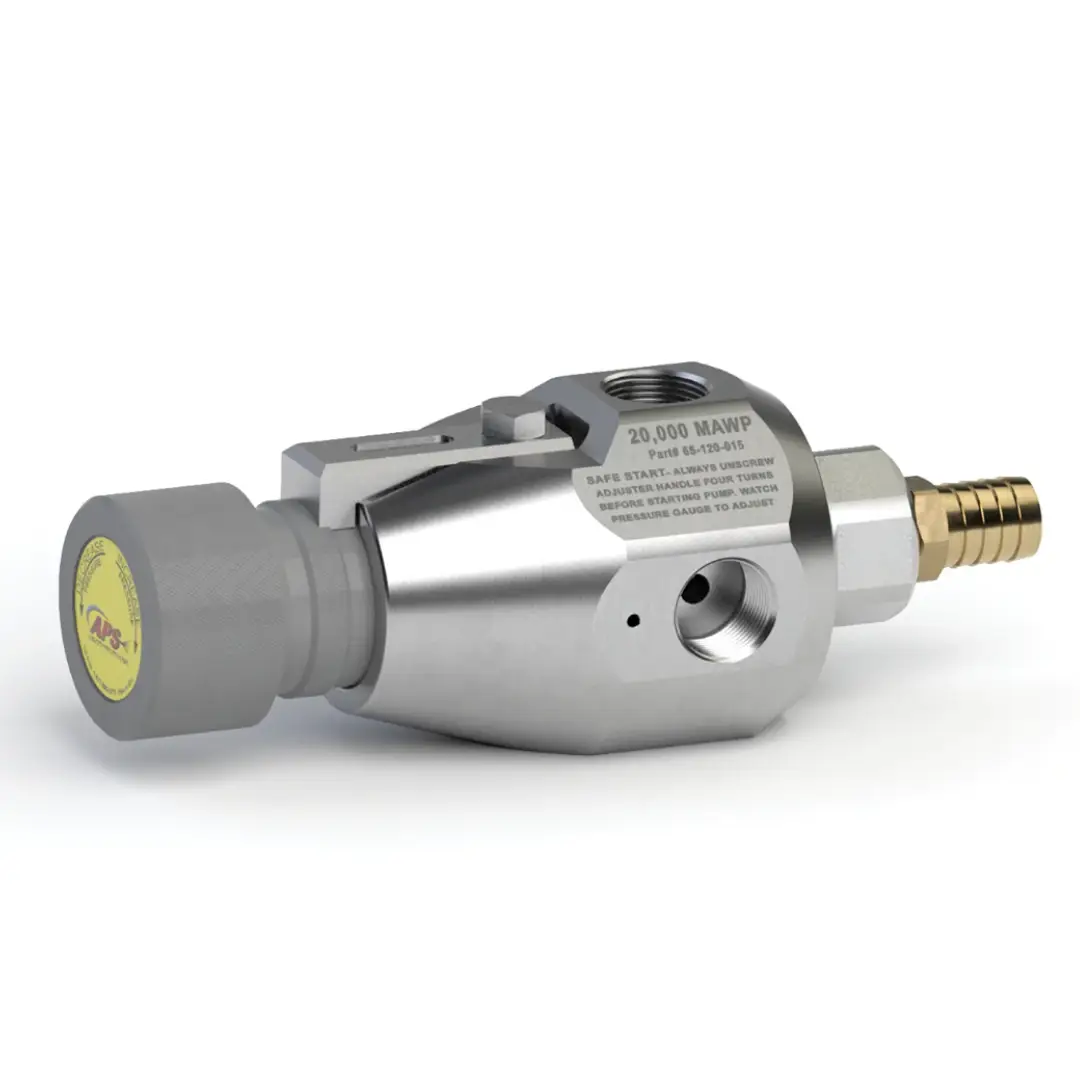

Advanced Pressure Systems (APS) 20K Pressure Regulating Valve (PRV) Assembly, Stainless Steel, 1/2" NPT Discharge, Jetstream Style 54592, 65-120-015

Part Number : 65-120-015

Brand :
Advanced Pressure Systems (APS)

Advanced Pressure Systems 20K pressure regulating valve (PRV) assembly for high-pressure waterblast pump systems. Stainless steel Jetstream-type by-pass valve that maintains system pressure and diverts excess flow to a low-pressure outlet.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

This Advanced Pressure Systems 20K pressure regulating valve (PRV) assembly is designed for diesel and electric high-pressure pumping units to divert a portion of the flow back to a low-pressure outlet while maintaining constant system pressure. The valve acts as a hand-adjusted needle by-pass valve, allowing operators to control pressure when the application requires flow at the low end of the pump operating range. For electric units a PRV is required equipment because motor speed is not adjustable. All key components are machined from stainless steel and the cartridge-style insert simplifies field rebuilds with minimal downtime. The Jetstream-style assembly mounts directly on the fluid end discharge manifold and includes a 1/2" NPT(F) discharge adapter with 1/2" NPTM x 3/4" hose size brass hose barb.

Key Features

• 20,000 psi stainless steel pressure regulating valve (PRV) assembly

• Hand-adjusted needle by-pass valve for accurate pressure setting

• Cartridge-style internal assembly for fast field rebuilds and low downtime

• Jetstream J/S type design for direct mounting to compatible fluid end manifolds

• Includes 1/2" NPT(F) 20K discharge adapter and 1/2" NPTM x 3/4" hose size brass hose barb

• Suitable for high-pressure industrial cleaning, hydroblasting and surface preparation

Applications & Benefits

• Controls system pressure on 20K diesel and electric waterblast pump units

• Diverts excess pump flow to a low-pressure outlet to protect pumps, hoses and accessories

• Provides smooth pressure control when running at the low end of pump capacity

• Required on electric units where motor speed cannot be adjusted

• Helps prevent engine bogging on diesel units by bypassing excess flow

• Reduces maintenance time through quick cartridge replacement and simple adjustment

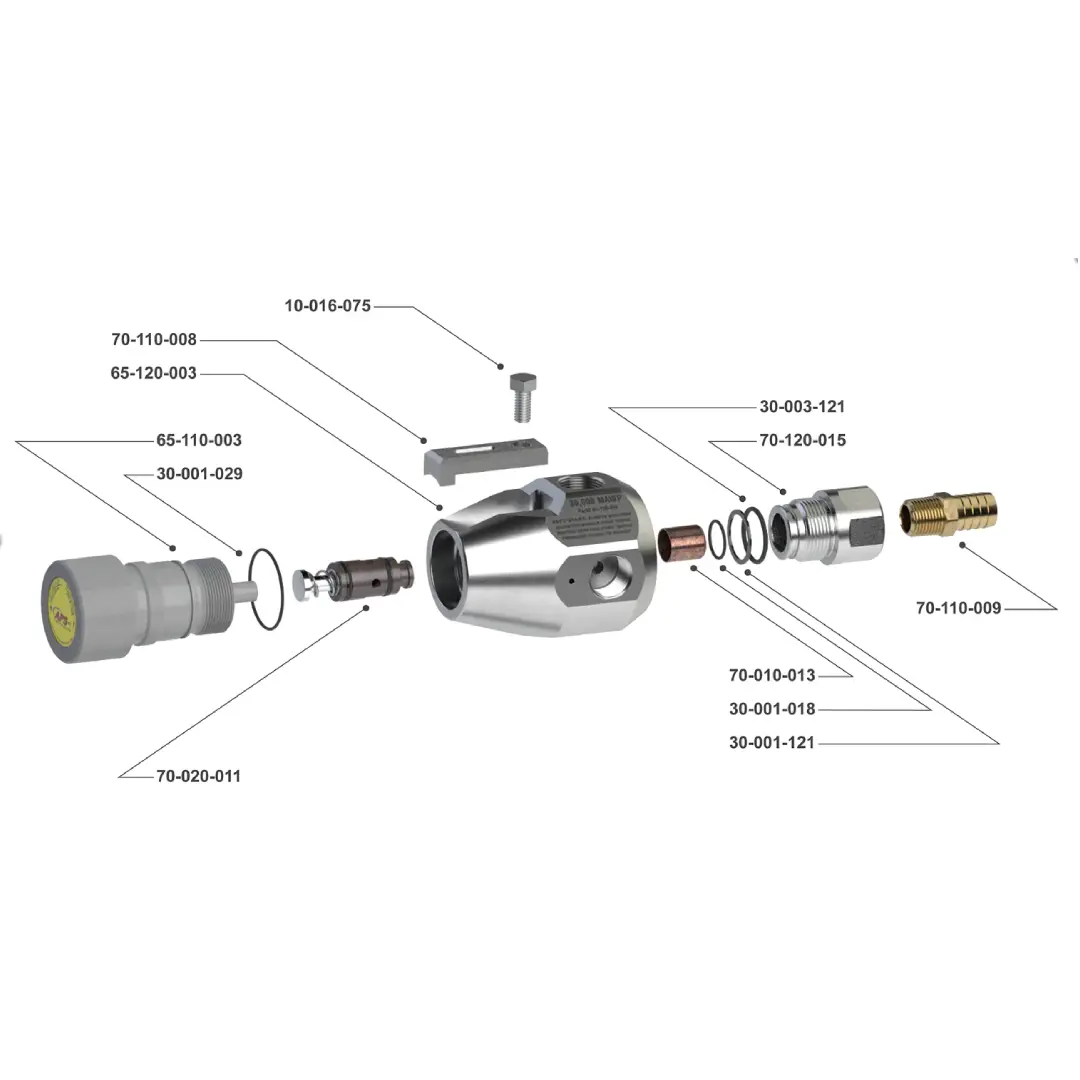

Including Components

• 65-120-015 – Assembly, 20K J/S type pressure regulating valve (PRV), J/S type 54592

• 10-016-075 – Bolt, hex head 3/8"-16 x 3/4" stainless steel

• 30-001-018 – O-ring 2-018, Buna-N 90 duro (GDWJ type 22-17046)

• 30-001-029 – O-ring 2-029, Buna-N 90 duro

• 30-001-121 – O-ring 2-121, Buna-N 90 duro (GDWJ type 77800023)

• 30-003-121 – Back-up ring 8-121, Buna-N 90 duro

• 65-110-003 – Handle, 15K/20K J/S PRV adjuster, J/S type 52144

• 65-120-003 – Body, J/S type 20K pressure regulating valve (PRV)

• 70-010-013 – Diffuser, 15K/20K FDV, J/S type 52201

• 70-010-019 – Decal, FDV/PRV adjuster knob

• 70-020-011 – Cartridge assembly, 20K FDV/PRV, J/S type 52255

• 70-110-008 – Clamp, J/S type PRV hold down

• 70-110-009 – Fitting, 1/2" NPTM x 3/4" hose size brass hose barb

• 70-120-015 – Discharge adapter, 1/2" NPT(F) 20K, J/S type 54587

Downloads

APS Pressure Regulating Valves Datasheet.pdf

pdf
Download

Specifications

Pressure rating
20,000 psi (20K) MAWP pressure regulating valve
Valve Type
Hand-adjusted pressure regulating (by-pass) needle valve
Style / compatibility
Jetstream J/S type PRV, assembly style 54592
Body Material
Stainless steel wetted components
Inlet Connection
20K port connection, Jetstream compatible
Low-pressure outlet
1/2" NPT(F) low-pressure outlet with hose barb fitting
Mounting
Pump-mounted directly on the fluid end discharge manifold
Typical medium
High-pressure waterblast service
