Advanced Pressure Systems (APS) 15K Pressure Regulating Valve (PRV) Assembly, Stainless Steel, 1/2" NPT Discharge, Jetstream Style 53920, 65-110-015

Part Number : 65-110-015

Brand :
Advanced Pressure Systems (APS)

Advanced Pressure Systems 15K pressure regulating valve (PRV) assembly for high-pressure waterblast pumping units. Provides precise bypass pressure control with stainless steel construction and direct mounting to Jetstream-style fluid ends.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

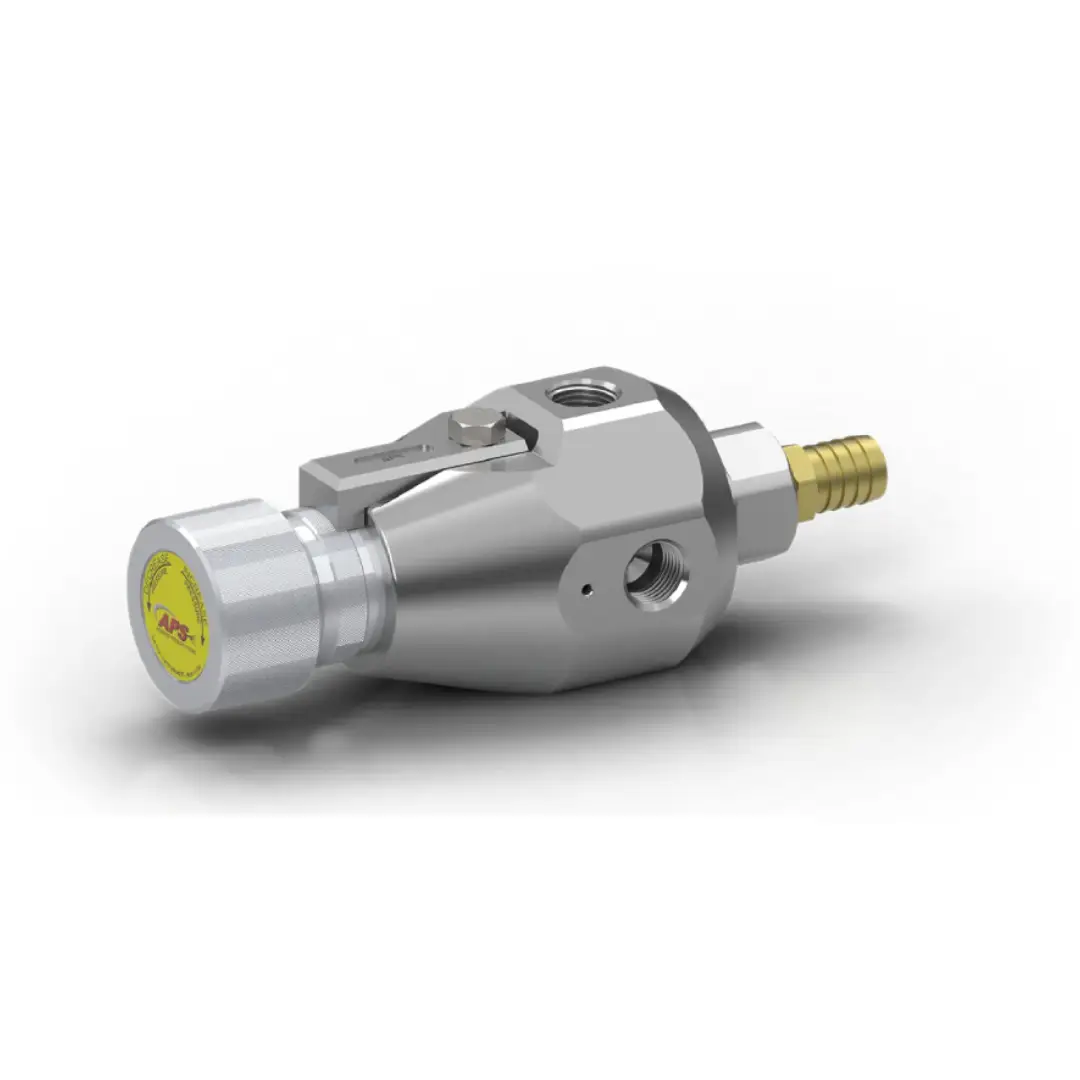

This Advanced Pressure Systems 15K pressure regulating valve (PRV) assembly is designed for diesel and electric high-pressure pumping units to divert excess flow back to a low-pressure outlet while maintaining stable system pressure. The hand-adjusted needle design, with lockable adjuster handle, allows operators to set and hold working pressure at the low end of the pump operating range. All wetted components are machined from stainless steel for long service life in demanding waterblast applications. The assembly mounts directly to Jetstream-style discharge manifolds and includes a 1/2" NPT(F) discharge adapter with 1/2" NPTM x 3/4" hose size brass hose barb.

Key Features

• 15,000 psi stainless steel pressure regulating valve (PRV) assembly

• Hand-adjusted needle design with lockable adjuster handle for stable pressure setting

• Simple cartridge-style internal design for quick field rebuilds and minimum downtime

• Direct mounting to Jetstream-type discharge manifolds for compact installation

• Includes 1/2" NPT(F) discharge adapter and 1/2" NPTM x 3/4" hose size brass hose barb

• Designed specifically for high-pressure waterblast pump systems

Applications & Benefits

• Controls system pressure on diesel and electric waterblast pumping units

• Diverts excess flow to a low-pressure outlet to protect pumps, hoses and accessories

• Provides smooth pressure control at the low end of the pump operating range

• Ideal for industrial cleaning, surface preparation and hydro blasting applications

• Helps maintain consistent operating pressure when drive speed is not adjustable

• Reduces unplanned downtime through easy maintenance and cartridge replacement

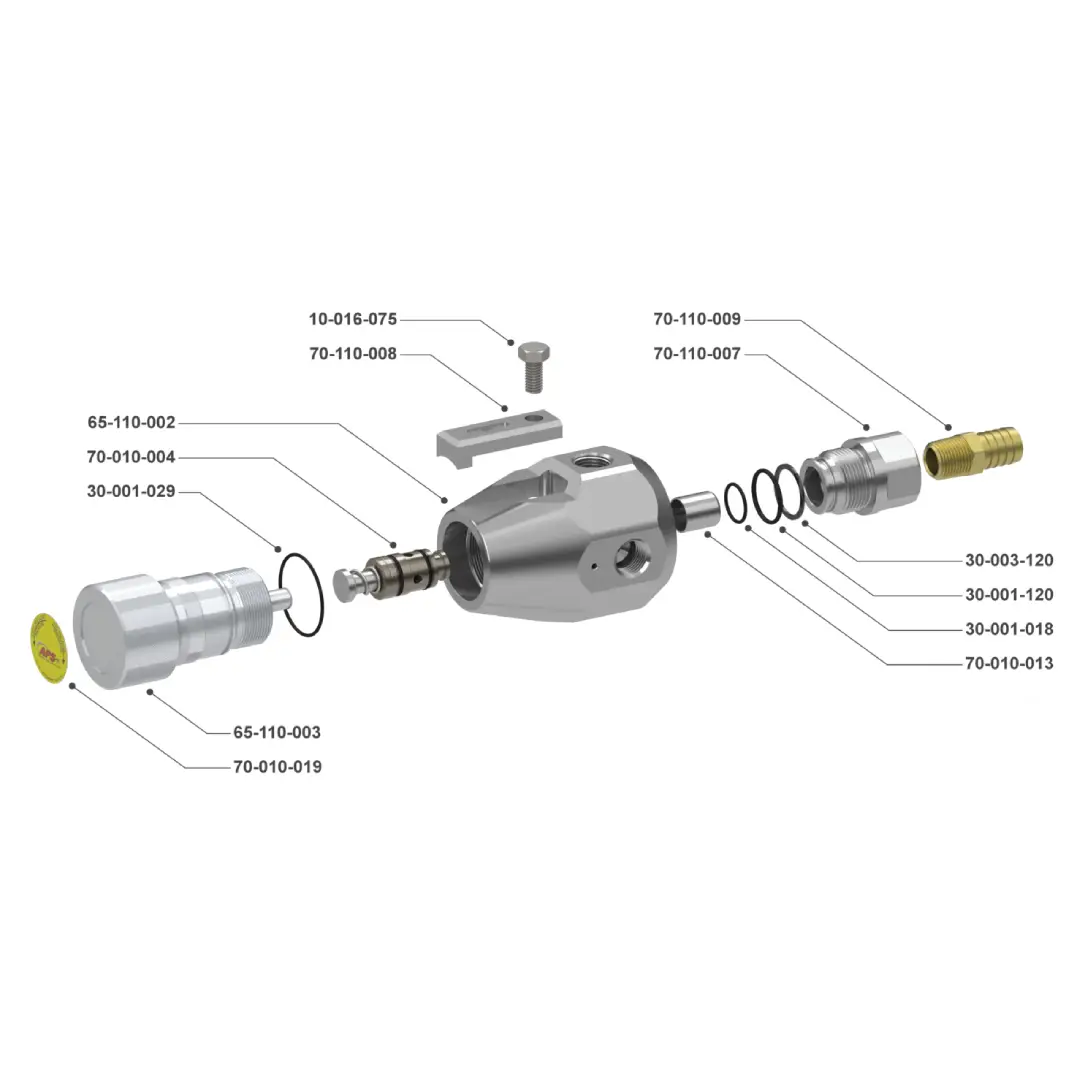

Including Components

• 65-110-015 – Complete 15K J/S type pressure regulating valve (PRV) assembly

• 10-016-075 – 3/8"-16 x 3/4" stainless steel hex head bolt

• 30-001-018 – O-ring 2-018, Buna-N 90 duro

• 30-001-029 – O-ring 2-029, Buna-N 90 duro

• 30-001-120 – O-ring 2-120, Buna-N 90 duro

• 30-003-120 – Back-up ring 8-120, Buna-N 90 duro

• 65-110-002 – 15K J/S type PRV body

• 65-110-003 – 15K/20K J/S PRV adjuster handle

• 70-010-004 – 15K FDV/PRV cartridge assembly

• 70-010-013 – 15K/20K FDV diffuser

• 70-010-019 – FDV/PRV adjuster knob decal

• 70-110-007 – 1/2" NPT(F) discharge adapter, J/S type 15K FDV

• 70-110-008 – J/S type PRV hold-down clamp

• 70-110-009 – 1/2" NPTM x 3/4" hose size brass hose barb

Downloads

APS Pressure Regulating Valves Datasheet.pdf

pdf
Download

Specifications

Pressure rating
15,000 psi (15K) MAWP pressure regulating valve
Maximum flow rating
Up to 60 gpm typical maximum flow for 15K PRV 65-110-015
Valve Type
Hand-adjusted pressure regulating (by-pass) needle valve
Body Material
Stainless steel wetted components
Discharge connection
1/2" NPT(F) discharge adapter with 1/2" NPTM x 3/4" hose barb
Style / compatibility
Jetstream J/S type pressure regulating valve, Jetstream style 53920
Typical medium
High-pressure waterblast service on diesel and electric pumping units
Cartridge design
Cartridge-style FDV/PRV insert for fast overhaul and service
