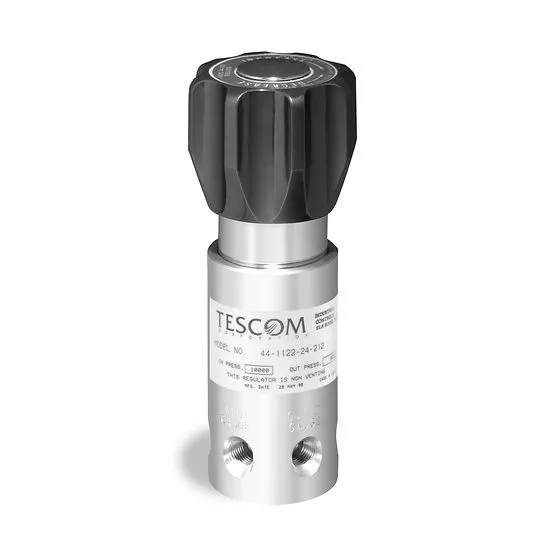

High Pressure Regulators
Product
|
Outlet Pressure Ranges
|
Material
|
Remaining Parts
|
Filter Material
|
Operating Temperature
|
Port Size & Type
|
Flow Capacity
|
Load Type
|
Additional Information
|
---|
0-500, 0-800, 10-1500, 15-2500, 25-4000, 50-6000 psig0-34.5, 0-55.2, 0.69-103, 1.0-172, 1.7-276, 3.4-414 bar | Body: Brass, 303, or 316 Stainless Steel Main Valve Seat: Vespel Vent Valve Seat: CTFEO-Rings: Buna-N Back-up Rings: Teflon | 300 Series Stainless Steel | Brass Body: 40 micron (nominal) - Bronze Stainless Steel Body: 15 micron (nominal) - 316 Stainless Steel | -40°F to 165°F / -40°C to 75°C | 1/4 NPTF | Cv = 0.06 | Spring | For custom modifications or a complete system solution, please contact your local sales office. | ||
Body: 316 Stainless Steel Seat, Vent and Main Valve: 17-4 Stainless Steel, Vespel Back-up O-Rings: See Part Number Selector | 300 Series Stainless Steel, 17-4 Stainless Steel, and Nitronic 60 | -15°F to 165°F / -26°C to 74°C | Sizes: 1/4, 3/8, 1/2, 9/16 Types: SAE, NPTF, MS33649, Medium Pressure, High Pressure | Cv = 0.02, 0.06, 0.12 | Spring, Air | For custom modifications or a complete system solution, please contact your local sales office. | ||||
Chrome plated Brass or Stainless Steel | -4°F to 158°F / -20°C to 70°C | Cv = 0.06 | For custom modifications or a complete system solution, please contact your local sales office. |
