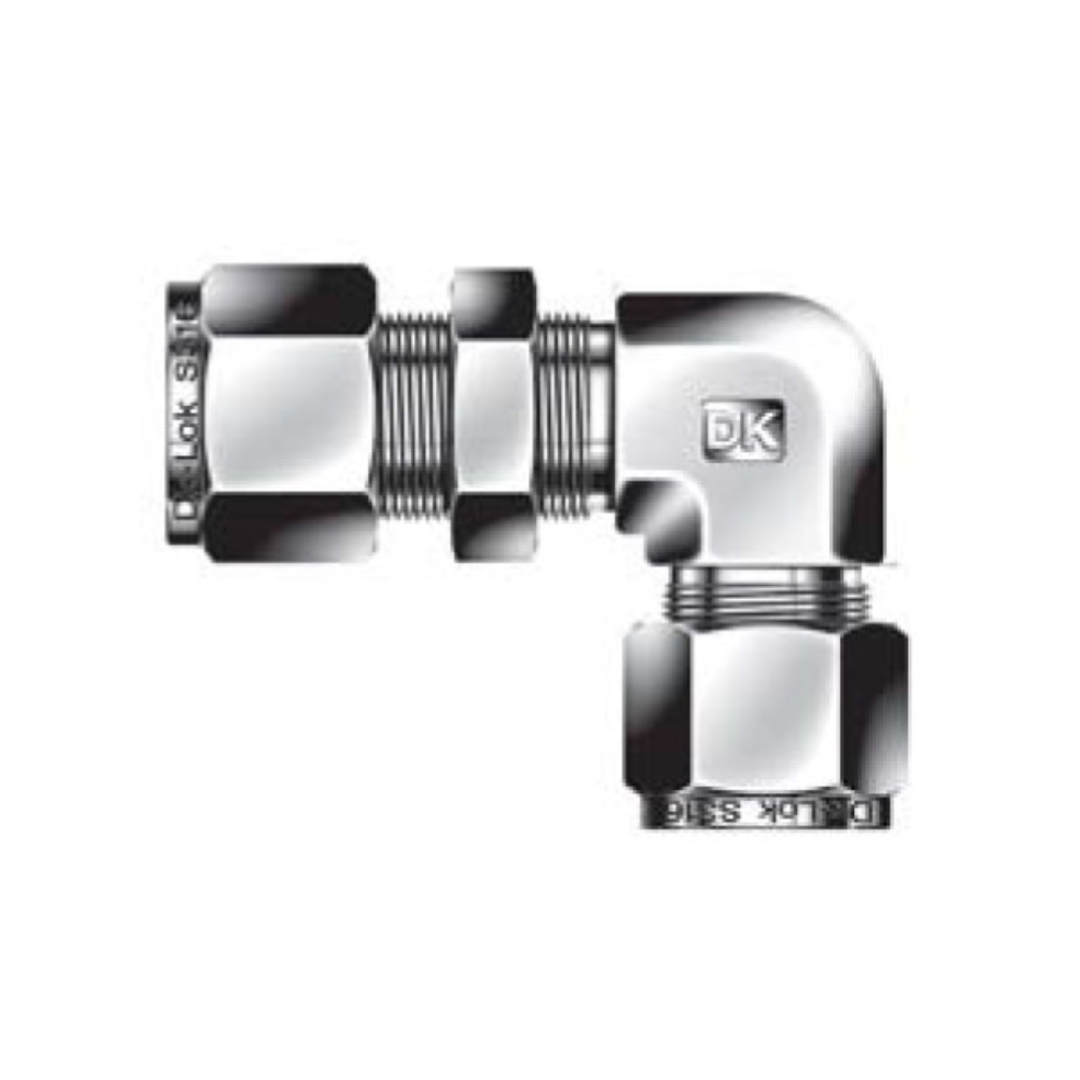

Elbow Bulk Head Tube Fittings
Product
|
Material
|
D - Tube O.D.
|
E - Min.
|
h - Width Across Flat
|
l
|
L1
|
---|
Stainless Steel 316/316L | 6.0 mm | 4.8 mm | 15.8 mm | 43.9 mm | 30.0 mm | ||
Stainless Steel 316/316L | 8.0 mm | 6.4 mm | 17.4 mm | 48.4 mm | 30.7 mm | ||
Stainless Steel 316/316L | 10.0 mm | 7.9 mm | 22.0 mm | 52.1 mm | 34.5 mm | ||
Stainless Steel 316/316L | 12 mm | 9.5 mm | 24.0 mm | 57.0 mm | 37.0 mm | ||
Stainless Steel 316/316L | 16.0 mm | 13.5 mm | 27.0 mm | 63.7 mm | 44.5 mm | ||
Stainless Steel 316/316L | 20.0 mm | 15.9 mm | 34.9 mm | 78.2 mm | 48.7 mm | ||
Stainless Steel 316/316L | 25.0 mm | 21.8 mm | 41.0 mm | 86.5 mm | 58.4 mm | ||
Brass | 6.0 mm | 4.8 mm | 15.8 mm | 43.9 mm | 30.0 mm | ||
Brass | 8.0 mm | 6.4 mm | 17.4 mm | 48.4 mm | 30.7 mm | ||
Brass | 10.0 mm | 7.9 mm | 22.0 mm | 52.1 mm | 34.5 mm | ||
Brass | 12 mm | 9.5 mm | 24.0 mm | 57.0 mm | 37.0 mm | ||
Brass | 16.0 mm | 13.5 mm | 27.0 mm | 63.7 mm | 44.5 mm | ||
Brass | 20.0 mm | 15.9 mm | 34.9 mm | 78.2 mm | 48.7 mm | ||
Brass | 25.0 mm | 21.8 mm | 41.0 mm | 86.5 mm | 58.4 mm | ||
Carbon Steel | 6.0 mm | 4.8 mm | 15.8 mm | 43.9 mm | 30.0 mm | ||
Carbon Steel | 8.0 mm | 6.4 mm | 17.4 mm | 48.4 mm | 30.7 mm |

Elbow Bulk Head Tube Fittings
The "Elbow Bulk Head Tube Fittings" category features a premium range of DK-Lok compression tube fittings tailored for industrial and commercial applications. These fittings are crafted from high-grade Stainless Steel 316/316L, ensuring excellent resistance to corrosion and durability under challenging environments. Each product is precision-engineered to provide a secure and leak-proof connection for various piping and tubing systems. These products cater to a wide variety of tubing needs, making them suitable for use in industries such as chemical processing, petrochemical, and more. Designed with meticulous attention to detail, they deliver reliable performance and seamless integration into existing systems.
