Compact Ball Valves
79
results
|
Product
|
Series
|
End Connection
|
Size Inlet x Outlet
|
Working Pressure
|
Handle
|
A
|
Type
|
Valve Pattern
|
End Connection Size
|
|---|
| 5.00 mm Orifice | Female NPT | 1/4" Female NPT x 1/4" Female NPT | 1000 psig (68.9 bar) | Lever Handle | 59.5 mm | |||||
| 5.00 mm Orifice | Tube OD | 6mm Tube OD x 6mm Tube OD | 1000 psig (68.9 bar) | Lever Handle | 59.5 mm | |||||
| 5.00 mm Orifice | Tube OD | 1/4" Tube OD x 1/4" Tube OD | 1000 psig (68.9 bar) | Lever Handle | 59.5 mm | |||||
| 7.50 mm Orifice | Female NPT | 3/8" Female NPT x 3/8" Female NPT | 1000 psig (68.9 bar) | Lever Handle | 81.0 mm | |||||
| 7.50 mm Orifice | Tube OD | 10mm Tube OD x 10mm Tube OD | 1000 psig (68.9 bar) | Lever Handle | 81.0 mm | |||||
| 7.50 mm Orifice | Tube OD | 3/8" Tube OD x 3/8" Tube OD | 1000 psig (68.9 bar) | Lever Handle | 81.0 mm | |||||
| 9.00 mm Orifice | Female NPT | 1/2" Female NPT x 1/2" Female NPT | 1000 psig (68.9 bar) | Lever Handle | 81.0 mm | |||||
| 9.00 mm Orifice | Tube OD | 12mm Tube OD x 12mm Tube OD | 1000 psig (68.9 bar) | Lever Handle | 81.0 mm | |||||
| 9.00 mm Orifice | Tube OD | 1/2" Tube OD x 1/2" Tube OD | 1000 psig (68.9 bar) | Lever Handle | 81.0 mm | |||||
| 12.50 mm Orifice | Female NPT | 3/4" Female NPT x 3/4" Female NPT | 1000 psig (68.9 bar) | Lever Handle | 102.5 mm | |||||
| 12.50 mm Orifice | Tube OD | 16mm Tube OD x 16mm Tube OD | 1000 psig (68.9 bar) | Lever Handle | 102.5 mm | |||||
| 12.50 mm Orifice | Tube OD | 5/8" Tube OD x 5/8" Tube OD | 1000 psig (68.9 bar) | Lever Handle | 102.5 mm | |||||
| 12.50 mm Orifice | Tube OD | 3/4" Tube OD x 3/4" Tube OD | 1000 psig (68.9 bar) | Lever Handle | 102.5 mm | |||||
| 16.00 mm Orifice | Female NPT | 1" Female NPT x 1" Female NPT | 1000 psig (68.9 bar) | Lever Handle | 102.5 mm | |||||
| 16.00 mm Orifice | Tube OD | 1" Tube OD x 1" Tube OD | 1000 psig (68.9 bar) | Lever Handle | 102.5 mm | |||||
| 5.00 mm Orifice | Tube OD | 1/4" Tube OD x 1/4" Tube OD | 1000 psig (68.9 bar) | Lever Handle | 59.5 mm |

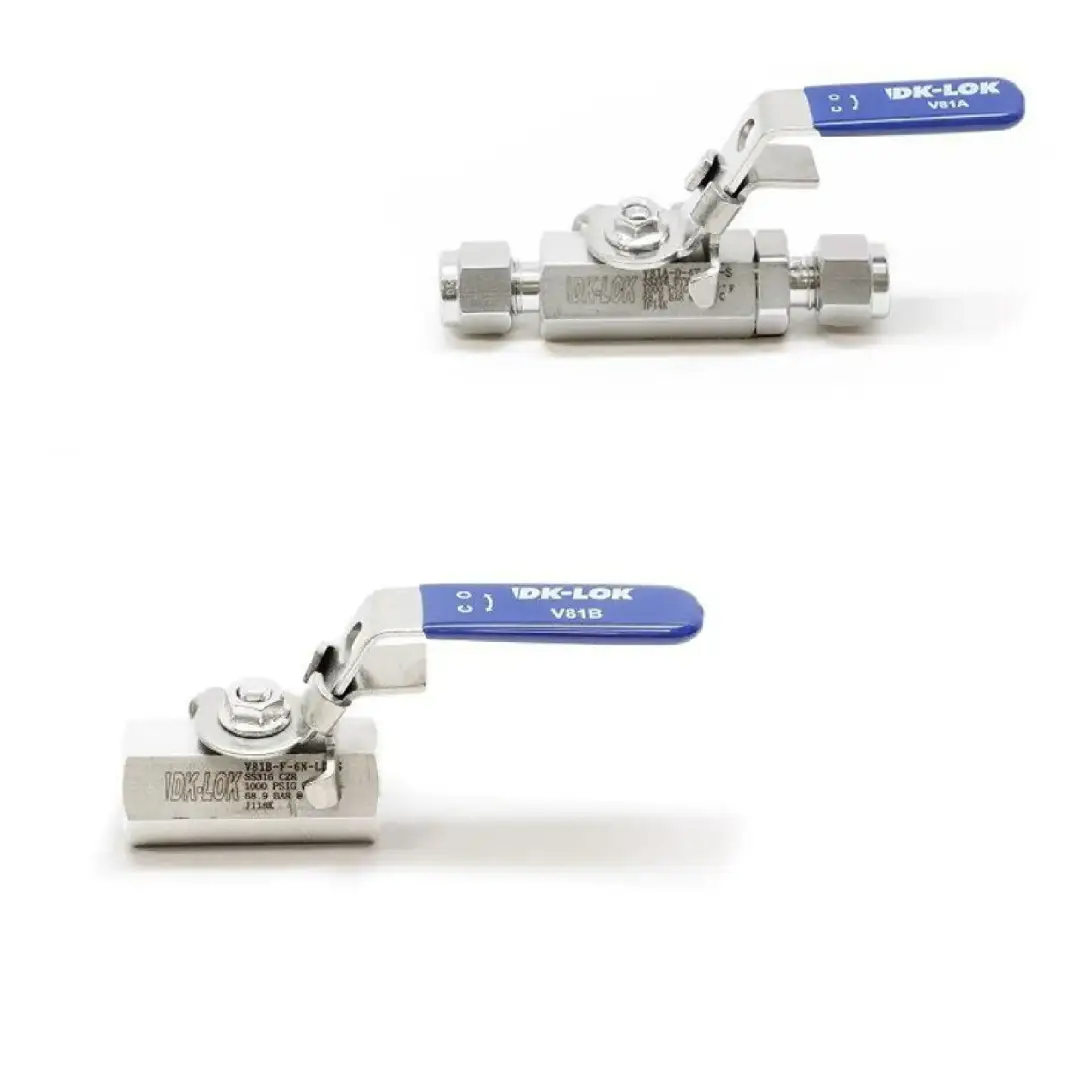

Compact Ball Valves
Compact Ball Valves are critical components in industrial piping systems, offering high performance, precision control, and durability. Designed with compact dimensions and robust materials, these valves are suitable for applications requiring space-saving solutions without compromising on reliability or performance.
Features:
- Precision Engineering: Ensures efficient fluid control with minimal leakage.
- High Pressure Rating: Most valves in this range support working pressures of up to 1000 psig (68.9 bar).
- Versatile Connections: Includes options like Female NPT and Tube OD connections for compatibility with diverse systems.
- Range of Orifice Sizes: Available in sizes ranging from 1.3mm to 16.0mm, catering to various flow rate requirements.
Applications: Compact Ball Valves are perfect for applications in oil and gas, chemical processing, power generation, and general industrial systems. They are ideal where precision flow control and reliable shutoff are critical.
Discover the full range of DK-Lok Compact Ball Valves and enhance your system's efficiency with these versatile, high-performance components.
