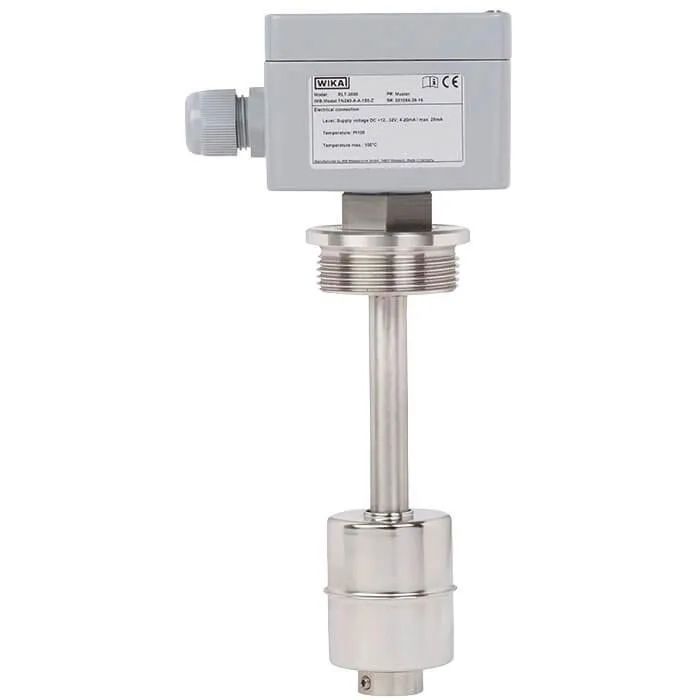

Wika Reed-chain level sensor For industrial applications, with temperature output, RLT-3000
Part Number : RLT-3000
Brand :
![WIKA]()
The model RLT-3000 level sensor with temperature output combines the recording of the level and temperature of liquids in a single measuring point.
View all
Description
The model RLT-3000 level sensor with temperature output combines the recording of the level and temperature of liquids in a single measuring point. The stainless steel used is suitable for a multitude of media, such as, for example, oil, water, diesel and refrigerants. Measuring principle A permanent magnet built into the float triggers, with its magnetic field, the resistance measuring chain built into the guide tube. The built-in transmitter converts the signal of the resistance measuring chain into a 4 ... 20 mA current signal. The current signal is proportional to the level. For the temperature measurement, there is a platinum measuring resistor built into the end of the guide tube. The model RLT-3000 is also available with 2 optional 4 ... 20 mA analogue outputs.
Applications
Combined level and temperature measurement of liquids in machine building Control and monitoring tasks for hydraulic power packs, compressors and cooling systemsSpecial features
Media compatibility: Oil, water, diesel, refrigerants and other liquids Level: Current output 4 ... 20 mA Temperature: Pt100, Pt1000, accuracy: Class BRelated Products
![]()
