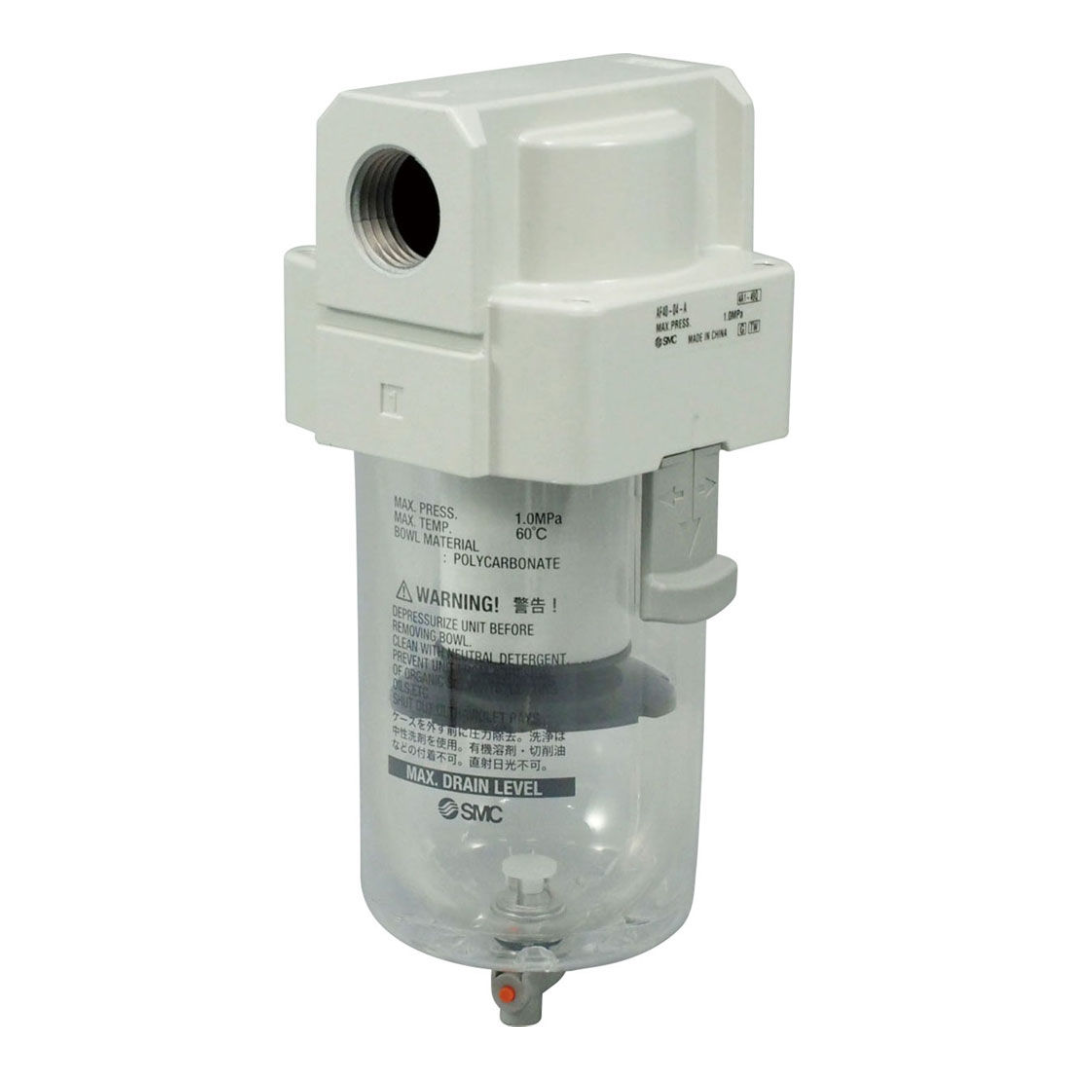

SMC AF40-A Modular Air Filter 1/2" Rc Connection, Manual Drain Cock Type, Polycarbonate Body, AF40-04-A

Part Number : AF40-04-A

Brand :
SMC

High-efficiency modular air filter for removing particulates and moisture in compressed air systems.

View all

KWD 20.000

Quantity
Description
Specifications
Downloads
Related products

Description

SMC’s new AF modular style air filter combines the element and bowl into one piece, making element replacement easy. There is a maximum 46% reduction in size, reducing the required maintenance space. The AF bowl (sizes 30 and 40) is covered with a clear bowl guard, allowing 360° monitoring. The AF’s modular design allows for connection to other SMC air preparation equipment. The series is available in 20, 30, and 40 body sizes.

Features

• Series AF-A modular style air filter is a cost effective, clean looking solution to your filtration needs.

• Its' modular design allows connection with other SMC air preparation equipment.

• The series is available in 6 size options with a wide range of accessories.

Applications

• Modular air filter

• Prevents contamination

• Lighter weight than old style modular AF.

• Thickness reduction of resin case provides increased capacity(approx. 1.3 times more).

• Improved water separation efficiency extends the service life of filter elements.

Downloads

AF_AW Air Filters Series.pdf

pdf
Download

Specifications

Series
AF40-A
Port Size
1/2"
Fluid
Air
Ambient and fluid temperature
–5 to 60°C(with no freezing)
Proof Pressure
1.5 Mpa
Maximum operating pressure
1.0 Mpa
Nominal filtration rating
5 μm
Bowl material
Polycarbonate
Drain capacity
45cm³/min
