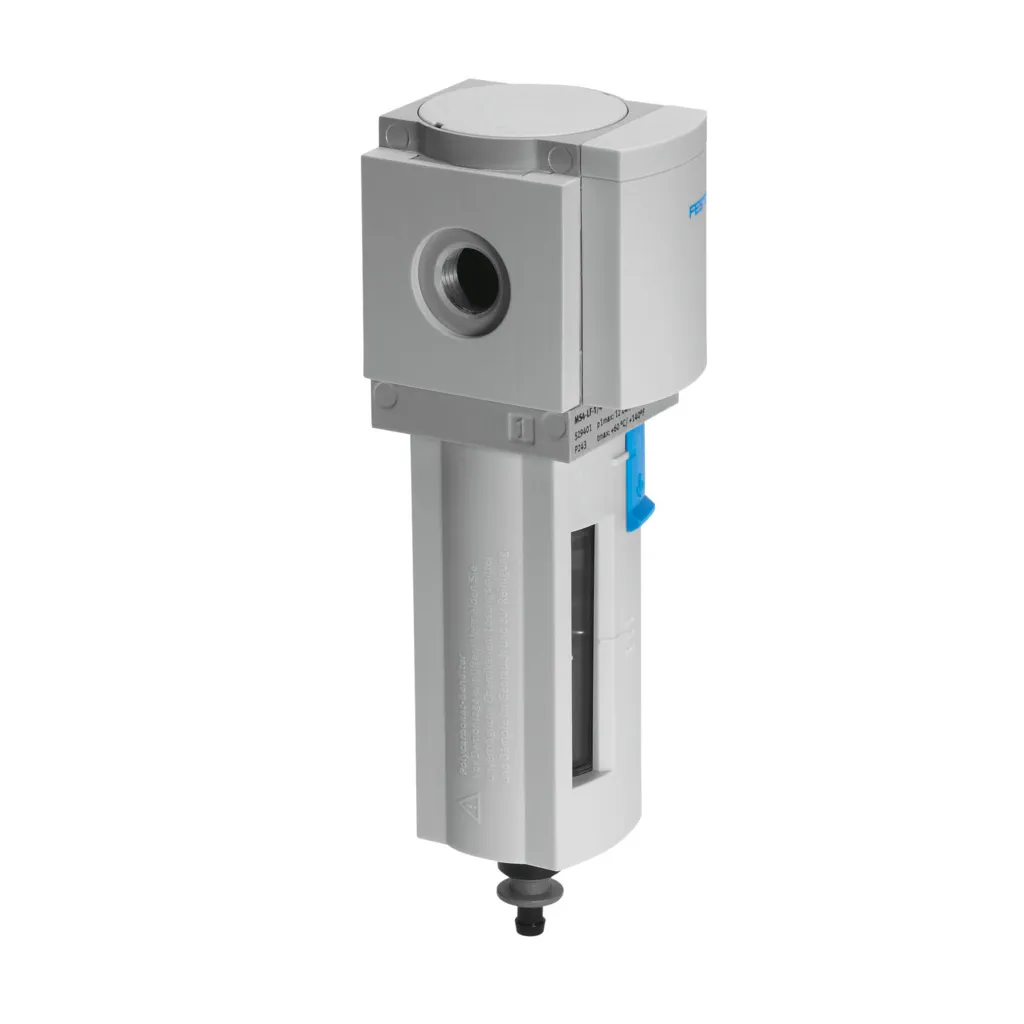

Festo Compressed Air Filter, 1/8", Operating Pressure 0-14 bar, MS4-LF-1/8-CRM

Part Number : MS4-LF-1/8-CRM

Brand :
Festo

Compact compressed air filter with a 1/8" connection and a pressure range of 0 to 14 bar.

View all

KWD 12.500

Quantity
Description
Specifications
Downloads
Related products

Description

The MS4-LF-1/8-CRM from Festo is designed for efficient air filtration and pressure regulation in pneumatic systems. With a 1/8" connection and a pressure range of 0 to 14 bar, it is suitable for industrial automation setups.

Overview

The MS4-LF-1/8-CRM provides clean and regulated air supply for pneumatic systems.

Key Features

1/8" connection, operating pressure 0 to 14 bar, compact and durable design.

Applications

Industrial air filtration systems, pneumatic setups, and automation machinery.

Downloads

Filters MS-LF-LFM-LFX, MS series.pdf

pdf
Download

MS4-LF-1-8-CRM Technical data.pdf

pdf
Download

MS4_6-LFR_LR_Op_Ins.pdf

pdf
Download

MS4_6_Assembly_Instruction.pdf

pdf
Download

Specifications

Size
4
Series
MS
Mounting position
Vertical +/-5°
Grade of filtration
5 µm
Condensate drain
Manually rotating
Design
Sintered filter with centrifugal separator
Bowl guard
Plastic bowl guard
Degree of condensate separation
>75 %
Symbol
00991519
Operating pressure
0 bar ... 14 bar
Standard nominal flow rate (standardised to DIN 1343)
1000 l/min
Operating medium
Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases
Corrosion resistance class CRC
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage Temperature
-10 °C ... 60 °C
Suitable for use with food
See supplementary material information
Air purity class at output
Compressed air to ISO 8573-1:2010 [6:8:4]
Media temperature
-10 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Pore size
<5 µm
Product weight
189 g
Type of mounting
Either: In-line installation With accessories
Pneumatic connection, port 1
G1/8
Pneumatic connection, port 2
G1/8
Note on materials
RoHS-compliant
Material sub-base
Die-cast aluminium
Material seals
NBR
Material filter
PE
Material housing
Die-cast aluminium
Material bowl
PC
Material separating plate
POM
