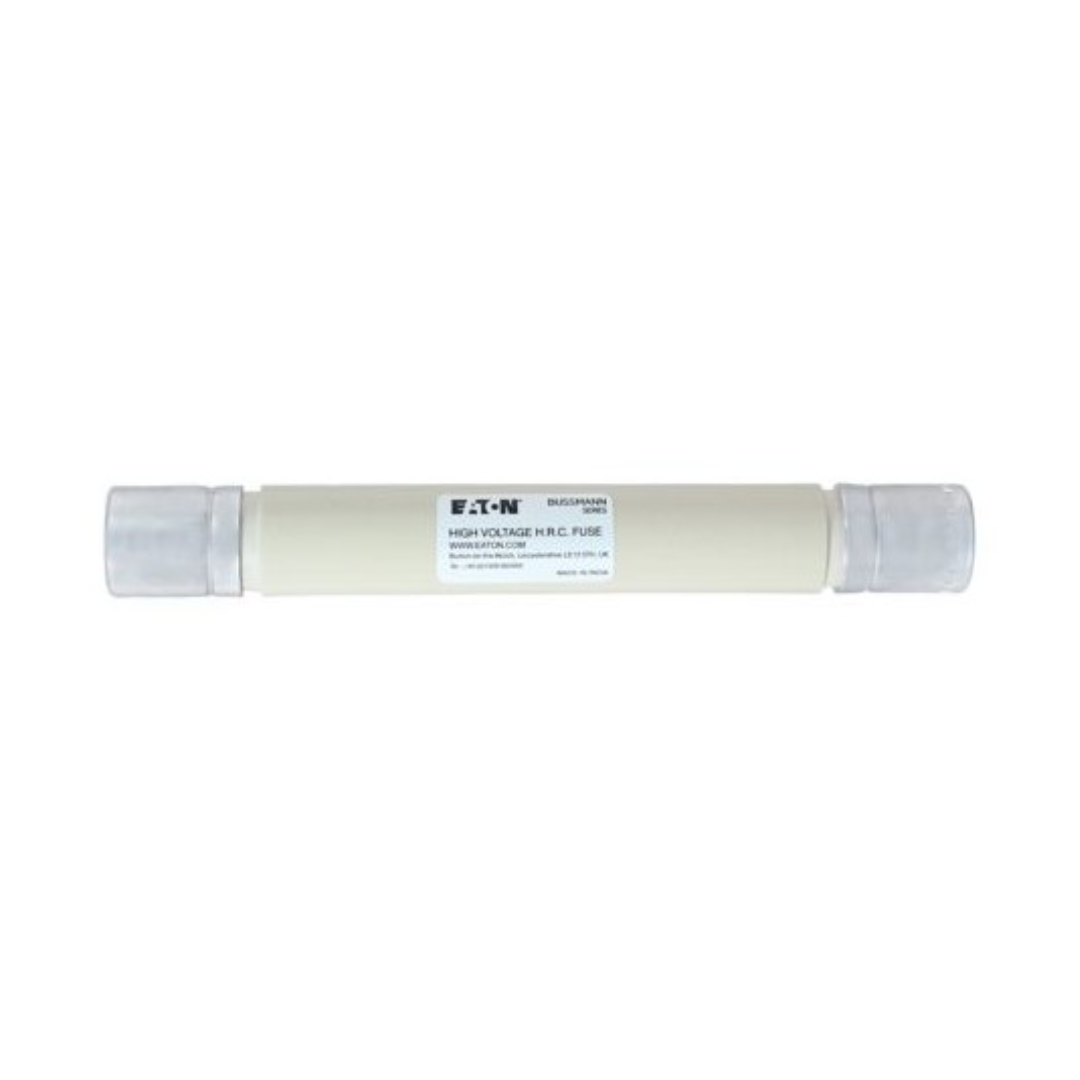

Eaton Bussmann Series Voltage Transfomer Fuse Link for Protection of Auxiliary Transformers, Medium Voltage, 3.15 A, AC 12 kV, back-up, BS, IEC, 12ABCNA3.15

Part Number : 12ABCNA3.15

Brand :
Eaton

Eaton Bussmann series Voltage Transfomer Fuse, Eaton's VT fuse-link, medium voltage.

View all

KWD 50.000

Quantity
Description
Specifications
Downloads
Related products

Description

Eaton's VT fuse-link, medium voltage, 3.15 A, AC 12 kV, 195 x 25.4 mm, back-up, BS, IEC, no tags, 12KV 3.15A FUSE, 195 x 25.4 mm, back-up, BS, IEC, cylindrical, voltage and auxiliary transformers, BS2692-1, IEC 60282-1, Breaking Capacity 45 kA. Its fetaures and benefits are :- • Cool running, low watts loss and power dissipation thanks to the M-effect ensuring high levels of substation utilisation. • Silver elements ensuring high conductivity and low power (revenue) loss. • 100% X-ray, all our medium voltage fuse links are X-rayed ensuring the highest possible standards are maintained.

Downloads

Datasheet_Eaton_12ABCNA3.15.pdf

pdf
Download

EATON_MEDIUM_VOLTAGE_FUSE_EN.pdf

pdf
Download

Specifications

Product Series
Eaton Bussmann series medium auxiliary fuse
Fuse Type
ABCN
Application
Protection of auxiliary transformers
Amperage Rating
3.15 A
Fuse indicator
Non Indicating
Fuse Size
195 x 25.4 mm
Installation technique
Air
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - max
62 Hz
Rated frequency - min
45 Hz
Standard
Meet the requirements of an ISO or DIN Standard
IEC
Voltage type
AC
With striker
No
Class
Class back-up
Barrels
1
Construction type
Bolt-on
Fuse shape
Cylindrical
Resistance
1.21 ohms
Interrupt rating
45 kAIC
Connection
Ferrule end x ferrule end
Construction size
195 x 25.4 mm
Voltage Rating
12 kV
