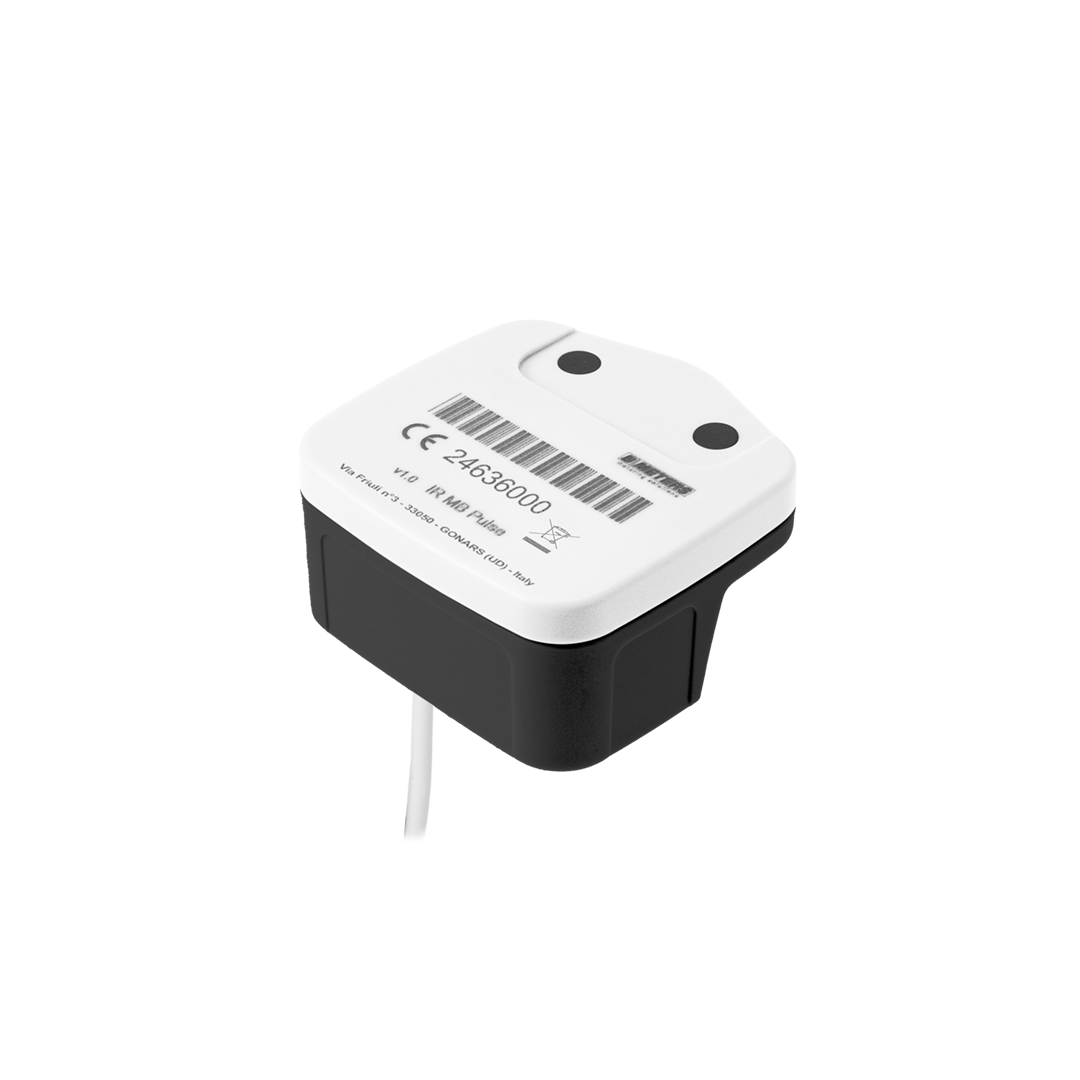

BMeters M-BUS Wired Transmission Module with two pulse inputs, IR-MB-PULSE

Part Number : IR-MB-PULSE

Brand :
BMeters

The IR-MB-PULSE enables wired M-Bus connection for devices with pulse outputs. It supports dual pulse inputs and is compatible with various meters.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The IR-MB-PULSE add-on module can be installed on water meters HYDRODIGIT-S1 (from MID22), HYDROSONIC and on thermal energy meters HYDROCAL-M4. Allows connection to the wired M-Bus network and allows to connect up to two pulse inputs (HydroCal-M4 only) compatible with meters (water, gas, electricity, heat, units) equipped with pulse emitter (REED or Open Collector). All information is sent over a single M-Bus address thus allowing easy reading of all consumption. The parameters of the module can be set via the M-Bus network or, only for HYDROCAL-M4, directly on the meter via Bmetering Software or free Android app BMetering NFC Config.

Features

Adds M-Bus functionality to pulse-based meters.; Supports configuration via NFC.

Downloads

v1.4_IR-MB-PULSE_DS_IT-EN.pdf

pdf
Download

v1.4_IR-MB-PULSE_QUG_IT_EN.pdf

pdf
Download

v1.0_IR-MB-PULSE_FAQ_EN.pdf

pdf
Download

Specifications

Power Supply
Non-replaceable lithium battery
Protection Class
IP68
Operating Temperature
+1 to +55°C
Dimensions
63 x 63 x 32 mm (excluding cable)
