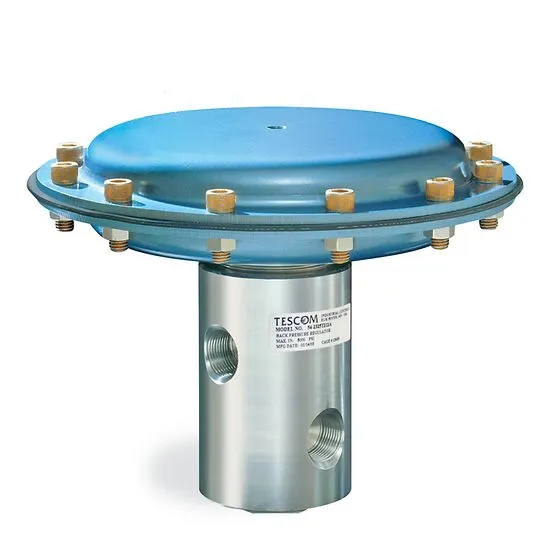

Emerson Tescom 54-2300 Backpressure Regulator, Made with durable Stainless Steel, 1000, 1500, 2500, 3500, 5000 and 10,000 psig / 69.0, 103, 172, 241, 345 and 690 bar

Brand :
Tescom

54-2300 Series backpressure hydraulic regulator is capable of flows from 5-50 GPM and is available in air load for use with the ER5000 Electropneumatic Controller. Ideal for use in hydraulic test stands and process control.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 54-2300 Series backpressure hydraulic regulator is capable of flows from 5-50 GPM and is available in air load for use with the ER5000 Electropneumatic Controller. Ideal for use in hydraulic test stands and process control. The Emerson TESCOM 54-2300 Backpressure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Wear rings available for non-lubricating media • Control pressure up to 10,000 psig / 690 bar • Flow Capacity Cv = 1.6 • Excellent crack-to-reseat ratio • Hardened metal-to-metal seats for heavy duty service • Choice of spring, dome and air actuated loading • Standard side mounting holes • Flanged end connections available

Downloads

TESCOM_ 54_2300 Backpressure Regulator_datasheet_1.pdf

pdf
Download

Specifications

Control Pressure Ranges
1000, 1500, 2500, 3500, 5000 and 10,000 psig / 69.0, 103, 172, 241, 345 and 690 bar
Material
Choose a housing material that is not corroded by the media and environment , and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Body: 303 or 316 Stainless Steel Seat, Poppet & Sensor: 17-4 PH Stainless SteelO-Rings: Buna-N, Viton , Ethylene Propylene or PolyurethaneBack-up Rings: PTFE
Bonnet (Spring load only), Remaining Parts
303 Stainless Steel
Operating Temperature (media)
-40°F to 165°F / -40°C to 74°C (Operating temperature range dependent on O-Ring material.)
Port Size & Type
1/2, 3/4SAE, NPTF1Flange
Flow Capacity
Cv = 1.6
Load Type
Spring, Dome, Air
Weight
Spring and Dome Loaded: 15 lbs / 6.8 kgAir Actuated: 30 lbs / 13.6 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
