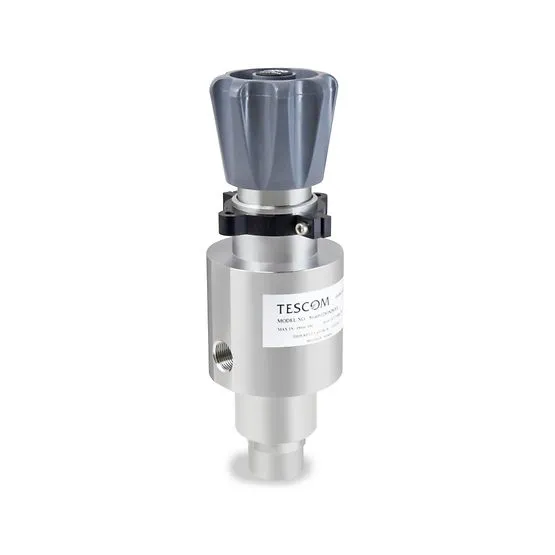

Emerson Tescom 50-4000 Series HPU Subsea Wellhead Regulator, Made with 316 Stainless Steel, Nitronic 60 (20,000 psig / 1379 bar Inlet)

Brand :
Tescom

50-4000, 50-4100 and 50-4200 Series pressure reducing regulators, with their integrated bypass valve, reduce time to production and maintenance cost. These first-of-its-kind regulators control high pressure water glycol, decrease pressurization time and extend service life of the regulator. Ideal for hydraulic power units (HPU) and wellhead control panels.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 50-4000, 50-4100 and 50-4200 Series pressure reducing regulators, with their integrated bypass valve, reduce time to production and mainteEmerson TESCOMce cost. These first-of-its-kind regulators control high pressure water glycol, decrease pressurization time and extend service life of the regulator. Ideal for hydraulic power units (HPU) and wellhead control panels. The Emerson TESCOM 50-4000 Series HPU Subsea Wellhead Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Unique integrated bypass valve simplifies the high pressure system design which results in fewer components and leak paths for added safety • The addition of the 50-4000 Series to HPU units simplifies complex start up procedures while decreasing down time associated with filling long umbilicals • Controls large variations in flow rates at pressures up to 20,000 psig / 1379 bar • New stem and seal design extends regulator service life in crucial high pressure water-based hydraulic applications

Downloads

TESCOM_ 50_4000 Series HPU Subsea Wellhead Regulator_datasheet_1.pdf

pdf
Download

TESCOM_ 50_4000 Series HPU Subsea Wellhead Regulator_datasheet_2.pdf

pdf
Download

Specifications

Outlet Pressure Ranges
9000 to 20,000 psig / 621 to 1379 bar8000 to15,000 psig / 552 to 1034 bar6000 to 15,000 psig / 414 to 1034 bar4000 to 10,000 psig / 276 to 690 bar2000 to 6000 psig / 138 to 414 bar2000 to 4000 psig / 138 to 276 bar1700 to 2500 psi
Body Material
316 Stainless Steel, Nitronic 60 (20,000 psig / 1379 bar Inlet)
Seat Material
Main Valve, Vent: 17-4 Stainless Steel, Vespel
O-Rings
Buna-N, Viton , EP
Back-up Rings
CTFE
Remaining Parts
316 Series Stainless Steel, 17-4 Stainless Steel, Nitronic 60
50-4000 Port Size & Type
3/8, 1/2, 9/161/4 BSPP, 1/4 NPTF, 1/4 NPTF (High Pressure), 1/4 NPTF (Medium Pressure)
50-4100, 50-4200 Port Size & Type
3/8, 9/161/4 NPTF (High Pressure), 1/4 NPTF (Medium Pressure)
Operating Temperature
-15°F to 165°F / -26°C to 74°C
Flow Capacity
Cv = 0.12 (Control Regulator)Cv = 1.9 (Integrated Bypass)
Weight (approximate)
50-4000: 15 lbs / 6.8 kg50-4100: 20 lbs / 9.1 kg50-4200: 20 lbs / 9.1 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
