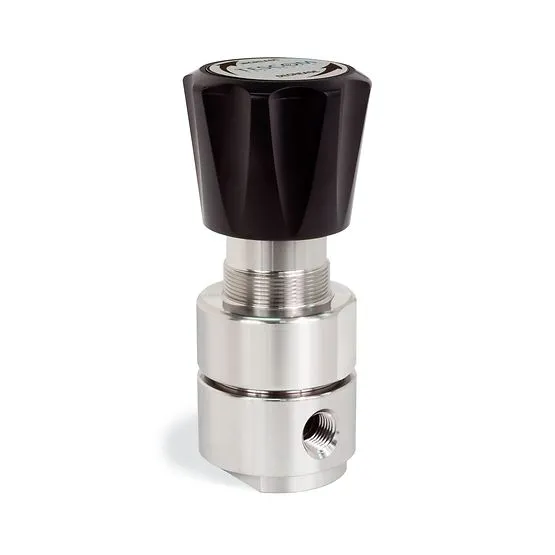

Emerson Tescom 44-5000 Series Single Stage Pressure Regulator, Inner: Teflon, Outer: 316 Stainless Steel

Brand :
Tescom

44-5000 Series is a compact, lightweight, high purity absolute single-stage regulator for specialty, corrosive, and pyrophoric gases. Diffusion-resistant metal-to-metal diaphragm seal ensures gas purity and integrity. Excellent for sub-atmospheric outlet pressures. Ideal for use in gas chromatograph sampling systems, delivery system cylinder regulator and low vapor pressure hydrocarbon gases.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 44-5000 Series is a compact, lightweight, high purity absolute single-stage regulator for specialty, corrosive, and pyrophoric gases. Diffusion-resistant metal-to-metal diaphragm seal ensures gas purity and integrity. Excellent for sub-atmospheric outlet pressures. Ideal for use in gas chromatograph sampling systems, delivery system cylinder regulator and low vapor pressure hydrocarbon gases. The Emerson TESCOM 44-5000 Series Single Stage Pressure Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Economical sub-atmospheric pressure control • Compact Size • Three inlet pressure ratings allow adaptation to specific use • Four outlet pressure ranges are available • Panel mounting is available (requires panel nut 8686-1) • Variety of porting options are available • NACE compliant designs are available

Downloads

TESCOM_ 44_5000 Series Single Stage Pressure Regulator_datasheet_2.pdf

pdf
Download

Specifications

Body Material
316 Stainless Steel or Brass
Diaphragm & Spring Material
316 Stainless Steel
Seat Material
Teflon
Friction Sleeve Material
(400 and 3500 psig / 27.6 and 241 bar inlet only)Inner: Teflon Outer: 316 Stainless Steel
Remaining Parts
316 Stainless Steel (Brass for Brass Bodies)
Operating Temperature
-40°F to 165°F / -40°C to 74°C
Port Size & Type
1/4 NPTF, 1/4 MS33649
Flow Capacity
120 psig / 8.3 bar inlet: Cv = 0.24400 psig / 27.6 bar inlet: Cv = 0.153500 psig / 241 bar inlet: Cv = 0.06
Weight (without gauges)
2 lbs / 0.9 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
