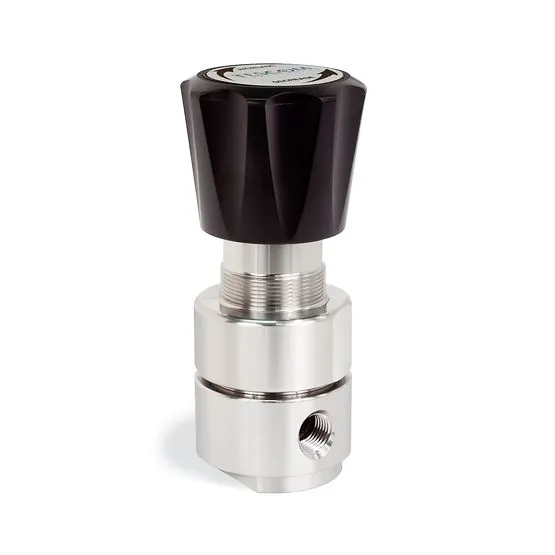

Emerson Tescom 44-2200 Series Single Stage Regulator, Stainless Steel Body, Up to 10,000 psi, 0-25, 0-50, 0-100, 0-250, 0-500 psig / 0-1.7, 0-3.4, 0-6.9, 0-17.2, 0-34.5 bar

Brand :
Tescom

44-2200 Series is a compact, lightweight high purity single-stage regulator for specialty, flammable, and industrial gas flows of less than 5 SCFM / 141 SLPM. Its diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Ideal for use in laboratory and point-of-use gas systems, sampling systems, zero, span and calibration analyzer gases, specialty and industrial gas cylinder regulator and chromatograph flame detector fuel supply.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Emerson TESCOM 44-2200 Series is a compact, lightweight high purity single-stage regulator for specialty, flammable, and industrial gas flows of less than 5 SCFM / 141 SLPM. Its diffusion-resistant metal diaphragm seal ensures gas purity and integrity. Ideal for use in laboratory and point-of-use gas systems, sampling systems, zero, span and calibration analyzer gases, specialty and industrial gas cylinder regulator and chromatograph flame detector fuel supply. The Emerson TESCOM 44-2200 Series Single Stage Regulator is engineered to provide outstanding performance and reliability. It is ideal for a wide range of applications, offering exceptional durability and efficiency. Key specifications and features make it a top choice for professionals worldwide.

Features

• Compact • Designed to minimize contamination and provide accurate regulation of any corrosive, noncorrosive, or toxic gas • Brass model provides added economy for control of non-corrosive media • Metal-to-metal diaphragm to body seal ensures minimum inboard and outboard leakage • Convoluted diaphragm delivers excellent accuracy and long service life • Panel mounting is available • 300 Series Stainless Steel or Brass bonnet • NACE compliant designs are available

Downloads

TESCOM_ 44_2200 Series Single Stage Regulator_datasheet_1.pdf

pdf
Download

Specifications

Outlet Pressure Ranges
0-25, 0-50, 0-100, 0-250, 0-500 psig / 0-1.7, 0-3.4, 0-6.9, 0-17.2, 0-34.5 bar
Body Material
316L Stainless Steel, Brass, Hastelloy or Monel
Seat Material
Teflon
Bonnet
300 Series Stainless Steel, Brass
Diaphragm
316 Stainless Steel, Elgiloy
Remaining Parts
316 Stainless Steel, Brass, Hastelloy or Monel
Port Size & Type
1/4 NPTF
Operating Temperature
-40°F to 165°F / -40°C to 74°C
Flow Capacity
3500 psig / 241 bar Inlet: Cv = 0.06400 psig / 27.6 bar Inlet: Cv = 0.15
Weight (without gauges)
2 lbs / 0.9 kg
Additional Information
For custom modifications or a complete system solution, please contact your local sales office.
