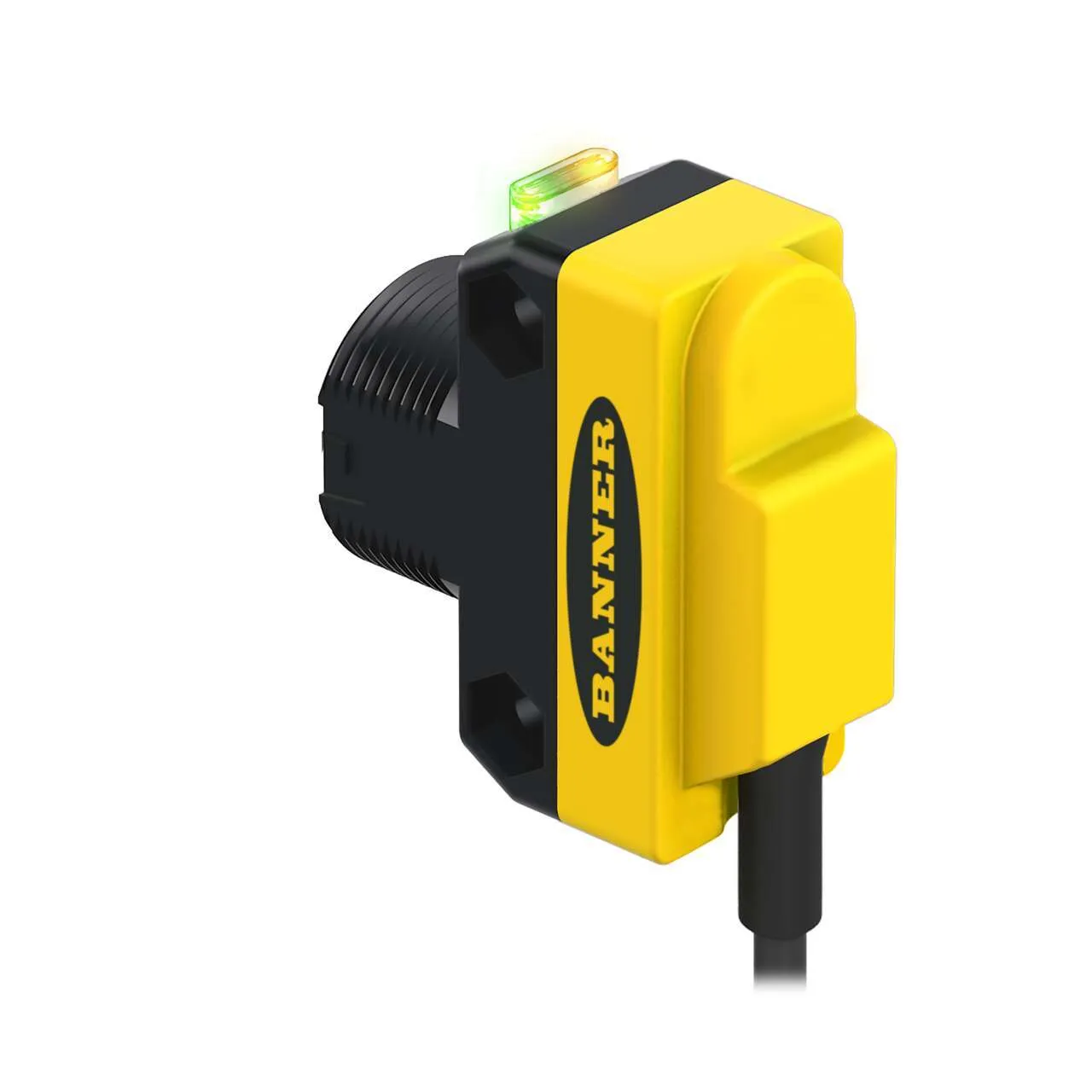

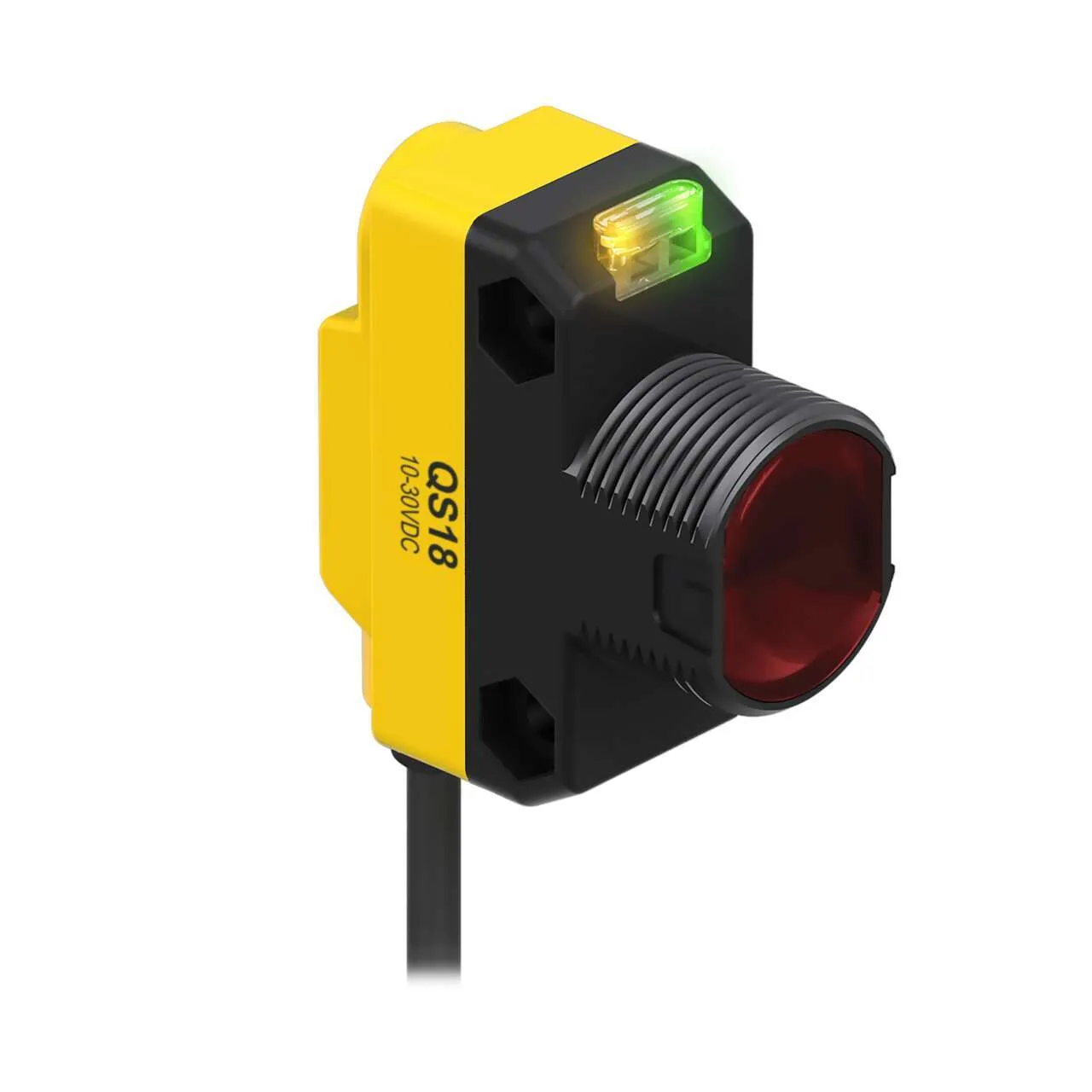

Banner QS18 Series All Purpose Photoelectric Sensor, World-Beam, Fixed-Field Range 150 mm, Input 10-30 V DC, Output Complementary Solid-State PNP M12 Integral QD, QS18VP6FF150Q8

Part Number : QS18VP6FF150Q8

Brand :
Banner

The QS18VP6FF150Q8 is a cutting-edge photoelectric sensor designed for precision and reliability in industrial applications.

View all

KWD 32.000

Quantity
Description
Specifications
Downloads
Related products

Description

The QS18VP6FF150Q8 photoelectric sensor offers unparalleled performance in detecting objects with accuracy and speed. Engineered with advanced technology, it is ideal for use in a wide range of industries, including manufacturing, automation, and quality control systems.

Advanced Technology

Experience the superior accuracy of QS18VP6FF150Q8, ensuring consistent and reliable object detection in diverse environments.

High-Quality Construction

The QS18VP6FF150Q8 is built with robust materials to withstand challenging industrial conditions while delivering consistent performance.

Object Detection

Equipped with advanced sensing technology, the QS18VP6FF150Q8 enhances efficiency and productivity in automation systems.

Downloads

IO-Link Data Reference Guide QS18 Clear Object Detector.pdf

pdf
Download

QS18 Expert Clear Object Detection Product Manual.pdf

pdf
Download

QS18 Series Sensor Product Manual.pdf

pdf
Download

SMB4050YL Accessory Bracket.pdf

pdf
Download

Specifications

IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Sensing Beam
Visible Red LED
Power
DC
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background Suppression (Fixed)
Housing Style
Rectangular w/M18 Mount
Primary Housing Material
ABS
Small Visible Spot
LED
Input Output
Discrete
Max Sensing Distance (mm)
150
Outputs
PNP
Power Supply/Supply Voltage
10-30 V dc
Connection
Integral QD
Quick Disconnect Type
M12
Min Op. Temp. (°C)
-20
Operation
The operating principle of the solenoid valve.
Light/Dark Operate
Max Op. Temp. (°C)
70
Output response time (ms)
0.85
Sensing Beam Wavelength
632
Delay at Power-up (ms)
100
Repeatability (µs)
160
Number of Pins
4
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Barrel Diameter (mm)
18
Indicator
LEDs
Feature: Audible
No
Feature: Quick Disconnect
Yes
