Sealed Steam Traps
|
Product
|
Body Material
|
Sizes & Connections
|
Maximum operating pressure
|
Maximum operating temperature
|
Maximum allowable pressure
|
Maximum allowable temperature
|
Sizes
|
Certification
|
|---|
| Stainless Steel A182 F304 | 1/2" and 3/4" with Screwed BSP or NPT, Socket Weld and Flanged Connections | 30 bar g | 285°C @ 30 bar g | EN 10204 3.1 Certified | |||||
| Stainless Steel A182 F304 | 1/2" and 3/4" with Screwed BSP or NPT, Socket Weld and Flanged Connections | 30 bar g | 400°C @ 28 bar g | EN 10204 3.1 Certified | |||||
| Stainless Steel ASTM A182 F304 | 3/4" and 1" with Butt Weld, Socket Weld and Flanged connections | 60 bar g | 450°C @ 54 bar g | EN 10204 3.1 Certified | |||||
| Stainless Steel AISI 304L | 1/4", 3/8", and 1/2" with Screwed BSP or NPT connections | 17 bar g | 300°C @ 17 bar g | EN 10204 3.1 Certified | |||||
| Stainless Steel ASTM A276 Gr. 304 | 1/2" with Screwed BSP or NPT and Socket Weld connections | 21 bar g as a steam tracer trap | 242°C as a steam tracer trap | 25 bar g @ 200°C | 400°C | ||||
| Stainless Steel ASTM A351 CF8M | 32 bar g | 400°C @ 28.8 bar g | Compatible with pipeline connectors | EN 10204 3.1 Certified |

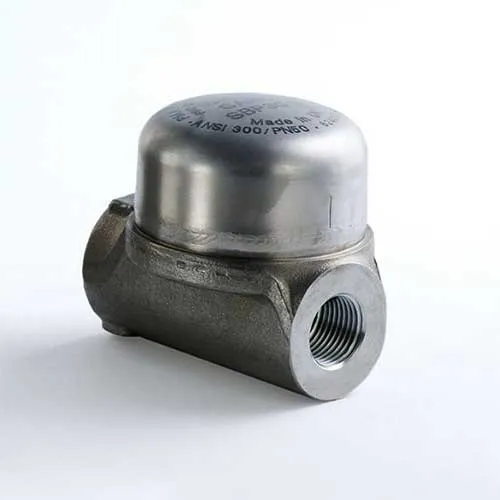

Sealed Steam Traps
Sealed Steam Traps by Spirax Sarco are innovative and highly efficient solutions engineered to provide unmatched reliability in steam system management. Manufactured from high-grade stainless steel materials, these steam traps ensure longevity, corrosion resistance, and exceptional performance under various operating conditions. The product lineup includes advanced models like the Balanced Pressure Thermostatic Steam Trap, Inverted Bucket Steam Trap, and Bimetallic Steam Trap, tailored for applications ranging from industrial heating to precision-controlled steam tracing. Spirax Sarco's dedication to quality and compliance with global standards like the Pressure Equipment Directive (PED) assures customers of top-tier reliability. These steam traps are suitable for diverse applications such as energy-efficient condensate removal, pipeline optimization, and thermal energy conservation, making them a preferred choice for professionals worldwide.
