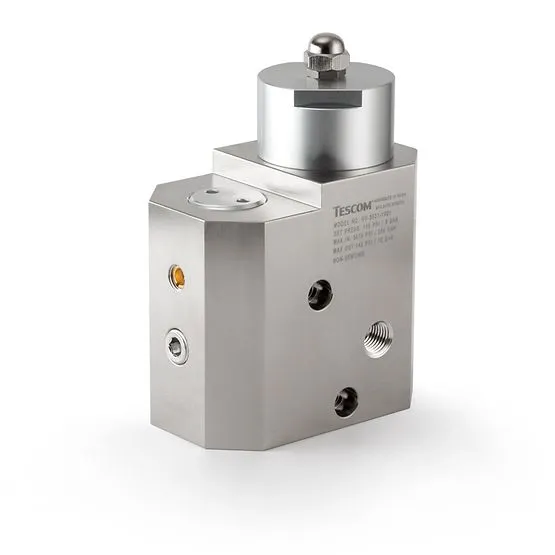

Hydrogen / Specialty Gas Regulators
Product
|
Operating Temperature
|
Flow Capacity
|
Filter
|
Body
|
Sensor
|
Remaining Parts
|
Cleaning
|
Body Material
|
Seat Material
|
Port Size & Type
|
---|
-30°F to 165°F / -34°C to 74°C | Cv = 0.50 | 300 Series Stainless Steel, Teflon , 18-8 Stainless Steel | Aluminum 6061-T6 with Electroless Nickel Plating, 316 Stainless Steel | Vespel | Inlet & Outlet Port Type: SAE, NPTF Inlet & Outlet Port Size1/4 Inlet, 1/4 Outlet, 1/4 Gauge 3/8 Inlet, 1/2 Outlet, 3/8 Gauge3/8 Inlet, 3/8 Outlet, 1/4 Gauge | ||||||
-40 °F TO +185 °F / -40 °C TO +85 °C | Cv 0.17 | 10 µm The 10 µm filter is for initial system assembly protection. The product is designed to be used with particulate free hydrogen. Your system should be designed with proper filtration before the regulator to protect against contamination.316 SST | Aluminum 6061-T6 with Electroless Nickel Plating | Aluminum 6061-T6 | 300 Series SST, Aluminum 6061-T6 , Polyimide (Vespel SP1) | CGA 4.1 and ASTM G93 | |||||
-40°F to +185°F / -40°C to +85°C | Cv=0.17; 5 g H2/sec | 10 µm The 10 µm filter is for initial system assembly protection. The product is designed to be used with particulate free hydrogen. Your system should be designed with proper filtration before the regulator to protect against contamination. | Aluminum 6061-T6 with Clear Anodic Coating | Aluminum 6061-T6 | 300 Series SST, Aluminum 60661-T6, Polyimide | CGA 4.1 and ASTM G93 |
