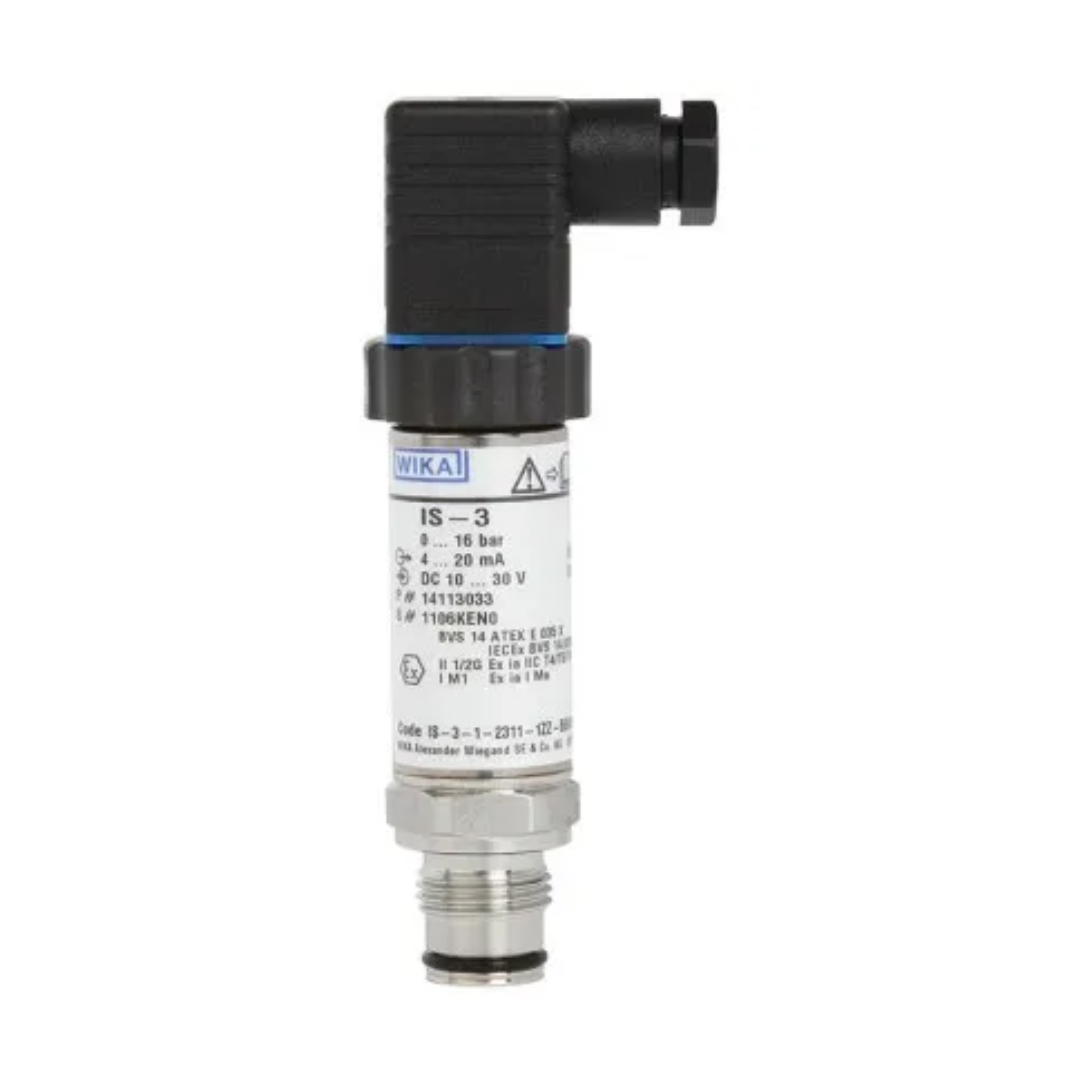

Hazardous Area Pressure Transmitters
|
Product
|
Measuring range
|
Process Connection
|
Electric connection
|
Vacuum tightness
|
Output Signal
|
Accuracy
|
Sealing
|
Approvals
|
Cable Length
|
Non-linearity
|
|---|
| -1...0 bar gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG9 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0...0.1 bar gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG10 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0...0.16 bar gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG11 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0...0.25 bar gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG12 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0...0.4 bar gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG13 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0...0.6 bar gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG14 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0…1 bar (0…15 psi) gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG15 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0…1.6 bar (0…20 psi) gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG16 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0…2.5 bar (0…30 psi) gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG17 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0…4 bar (0…60 psi) gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG18 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0…6 bar (0..100 psi) gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG19 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0…10 bar (0…150 psi) gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG20 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0…16 bar (0...200 psi) gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG21 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0…25 bar gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG22 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0…40 bar (0…600 psi) gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG23 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx | ||||
| 0…60 bar (0...1000 psi) gauge | G 1/2 B EN 837 | Angular connector acc. to DIN EN 175301-803 A PG24 | yes | 4 ... 20 mA, 2-wire | ≤ ±0.5 % of span | Without | ATEX/IECEx |
Hazardous Area Pressure Transmitters
Hazardous Area Pressure Transmitters are precision-engineered instruments designed to deliver reliable and accurate pressure measurements in hazardous and explosive environments. These transmitters are built to comply with stringent industry standards, ensuring safety, durability, and performance even in extreme conditions. Featuring robust construction, these pressure transmitters offer a variety of measuring ranges from vacuum to high-pressure applications, making them ideal for use in oil & gas, chemical processing, pharmaceutical, power generation, and industrial automation sectors. Equipped with advanced electronic connections, such as angular connectors compliant with DIN EN 175301-803, they provide seamless integration into existing process systems. The high-accuracy sensing technology and 4-20 mA output signal ensure precise data transmission, critical for process control and monitoring. These pressure transmitters are compatible with various process connections like G 1/2 B EN 837, ensuring ease of installation. Brands like WIKA, known for their high-quality pressure sensing solutions, dominate this category, offering certified, explosion-proof, and intrinsically safe solutions for hazardous locations. Whether for gas pipelines, petrochemical refineries, or manufacturing plants, these pressure transmitters guarantee unmatched reliability, stability, and compliance with safety regulations.
