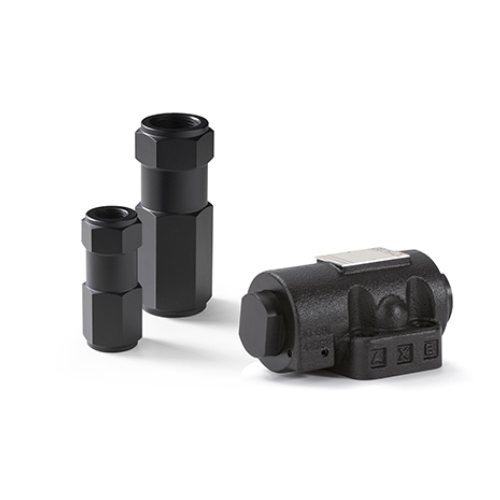

Check Valves
Product
|
Sizes
|
Maximum flow
|
Maximum Pressure
|
Cracking Pressure
|
Seal Options
|
Fluid compatibility
|
Ambient temperature
|
Compliance
|
Seals
|
Recommended viscosity
|
---|
G 1/4", G 3/8", G 1/2" | Up to 95 l/min | 350 bar | 0.3 bar | NBR (standard), FKM (/PE), HNBR (/BT) | Mineral oils (DIN 51524) and synthetic hydraulic fluids | Standard: -30°C to +70°C; FKM (/PE): -20°C to +70°C; HNBR (/BT): -40°C to +70°C | RoHS Directive 2011/65/EU, REACH Regulation (EC) n°1907/2006 | ||||
G 1/4", G 3/8", G 1/2", G 3/4", G 1", G 1 1/4" | Up to 500 l/min | 400 bar | Mineral oils (DIN 51524) and synthetic hydraulic fluids | -20°C to +80°C (standard), -40°C to +80°C (/BT option) | RoHS Directive 2011/65/EU, REACH Regulation (EC) n°1907/2006 | 15–100 mm²/s (maximum range 2.8–500 mm²/s) | |||||
ADRL: 300 l/min, AGRL/AGRLE: 500 l/min | ADRL: 400 bar, AGRL/AGRLE: 315 bar | Mineral oils (DIN 51524) and synthetic hydraulic fluids | Standard: -20°C to +80°C; HNBR: -40°C to +60°C; FKM: -20°C to +80°C | RoHS Directive 2011/65/EU, REACH Regulation (EC) n°1907/2006 | NBR (standard), FKM (/PE), HNBR (/BT) |
